[Out of Stock] Used C5 Turbo Wire Chopping System

[Out of Stock] Used Cable Management C5 Turbo Wire Chopping System With Spare Parts

Throughput up to 4,000 lbs/hr. In really nice shape. Was commissioned in early 2020 and is still in operation as of July 2025.

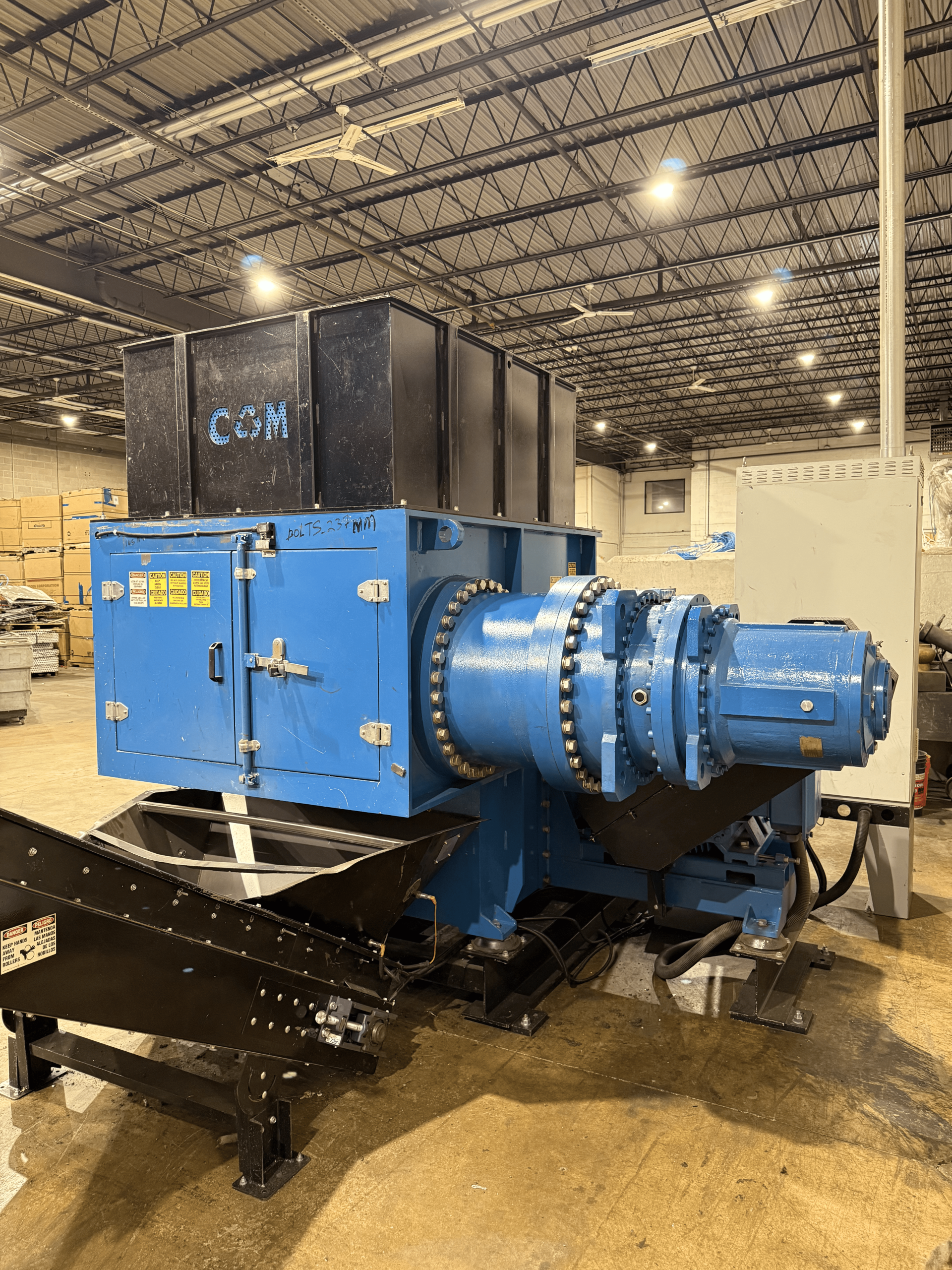

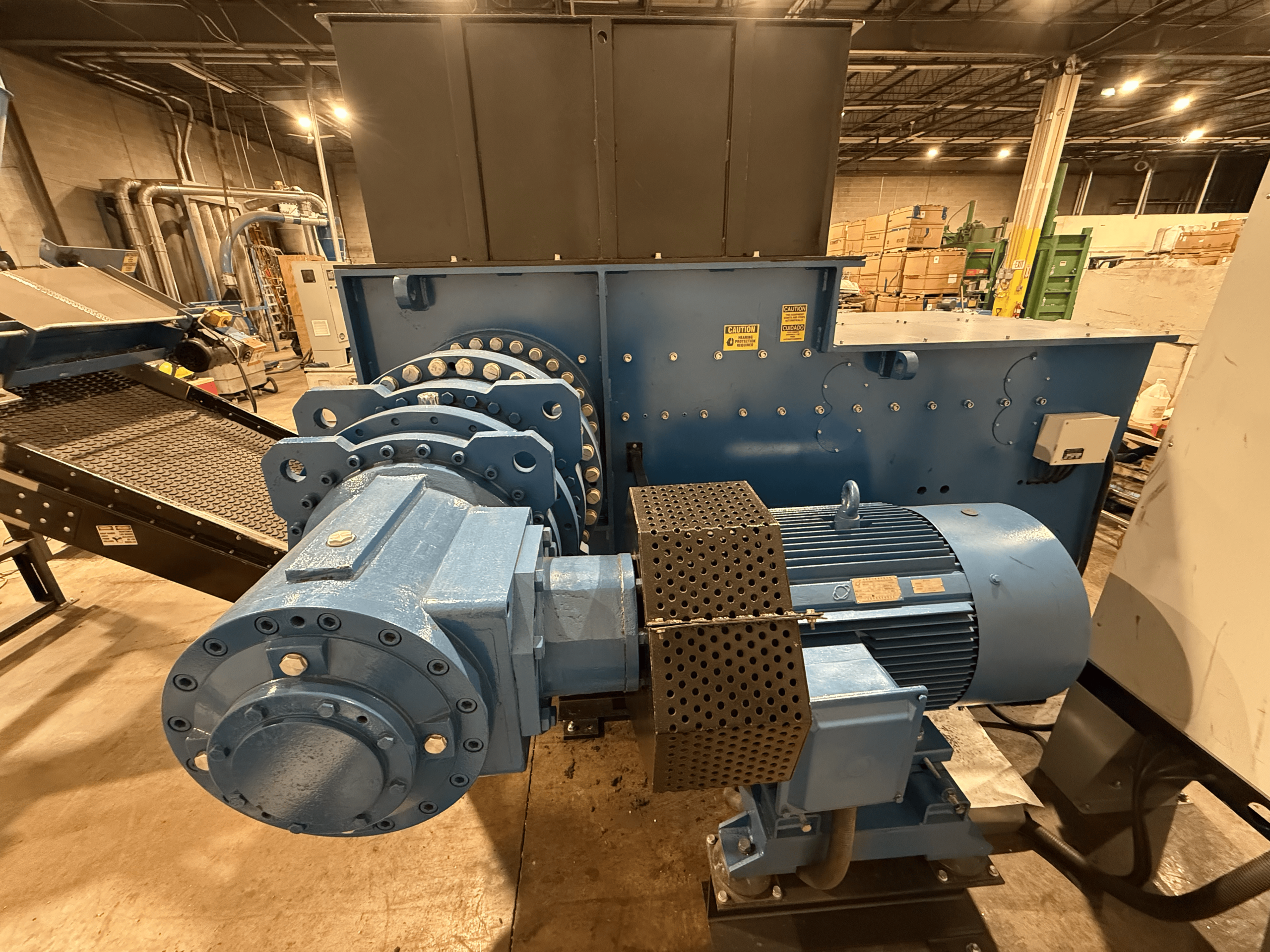

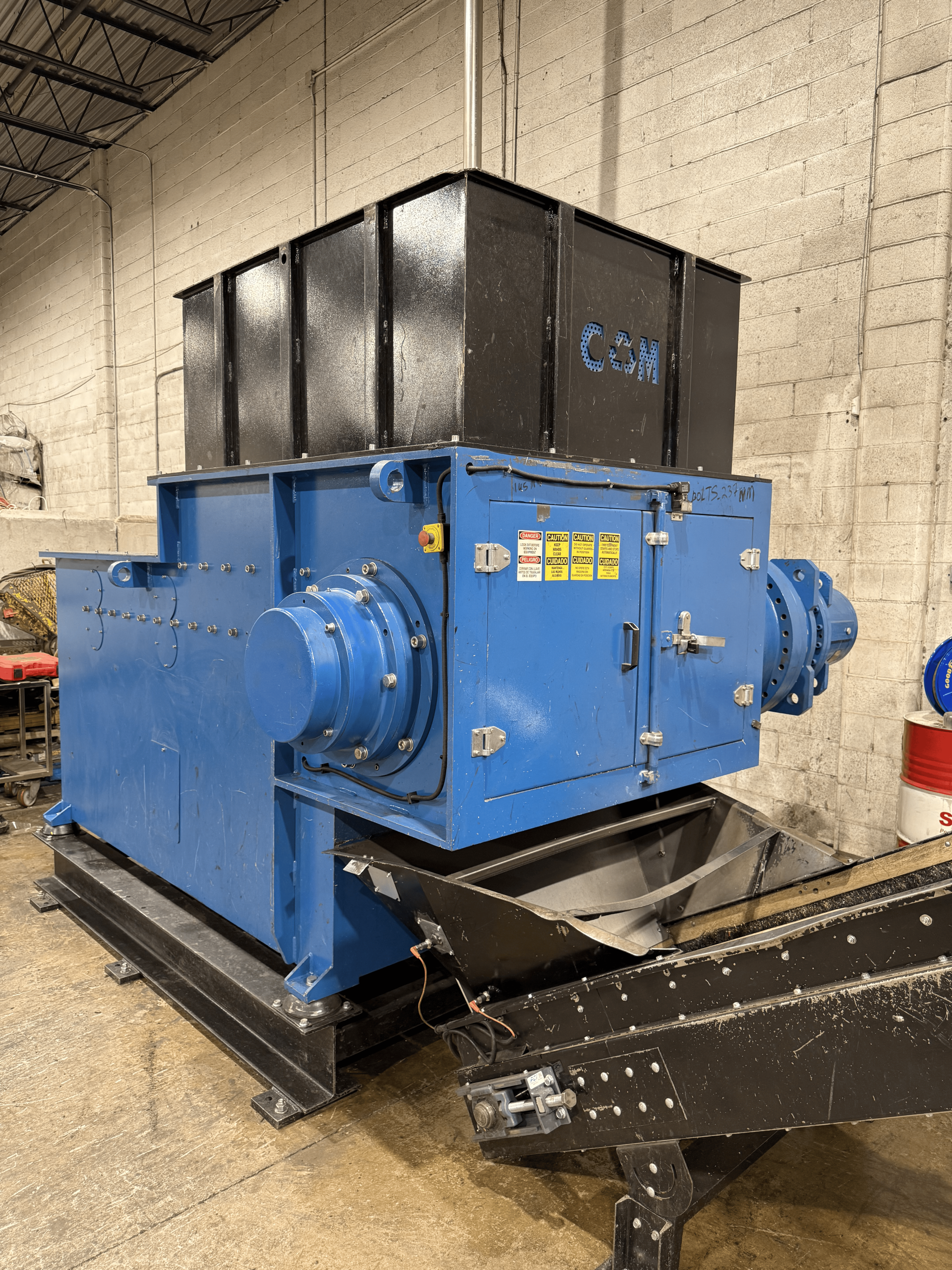

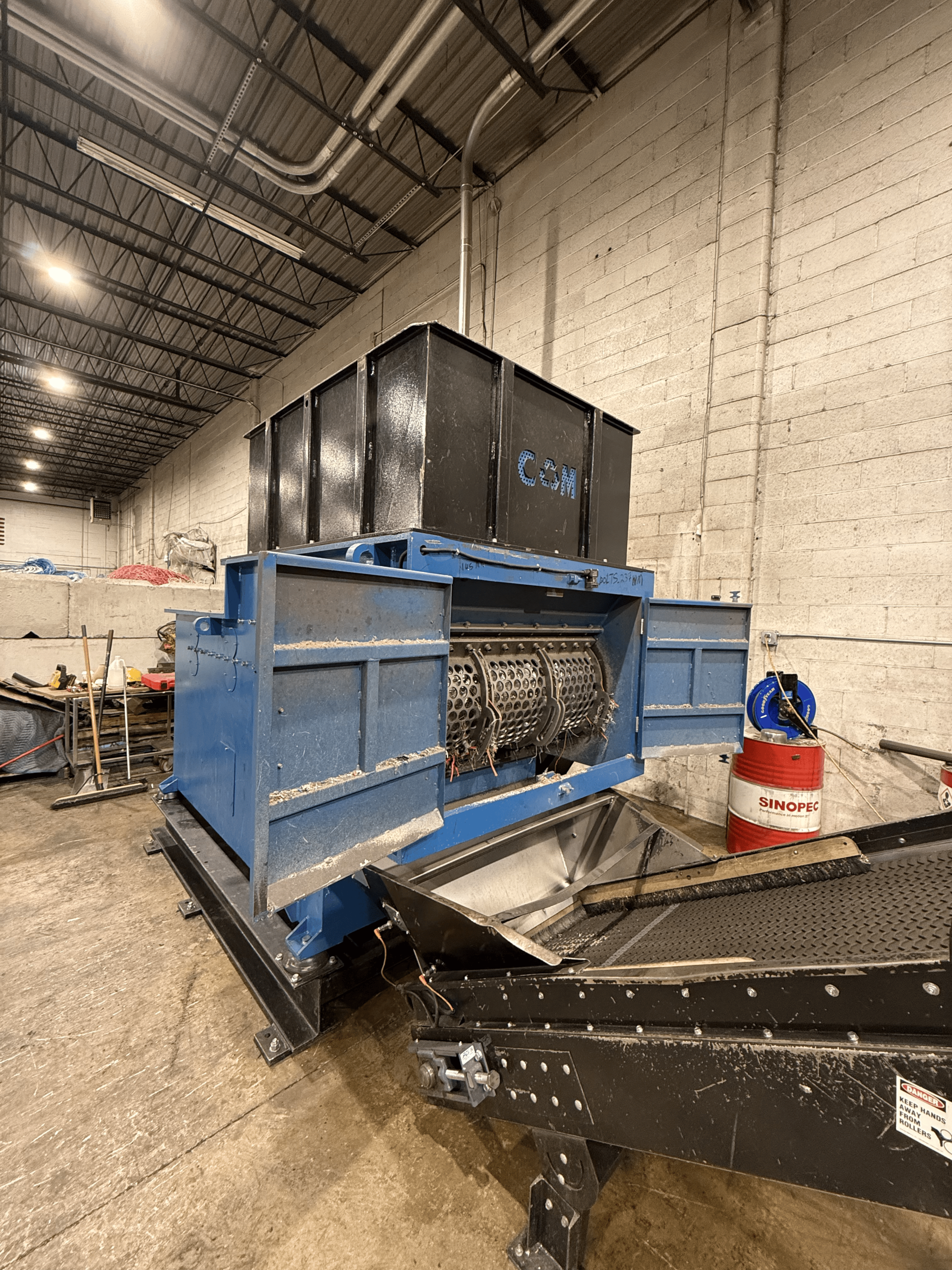

• CMSHSS-150GBH-1200 Single Shaft Shredder With Hydraulic Pushing Ram
  Specs:

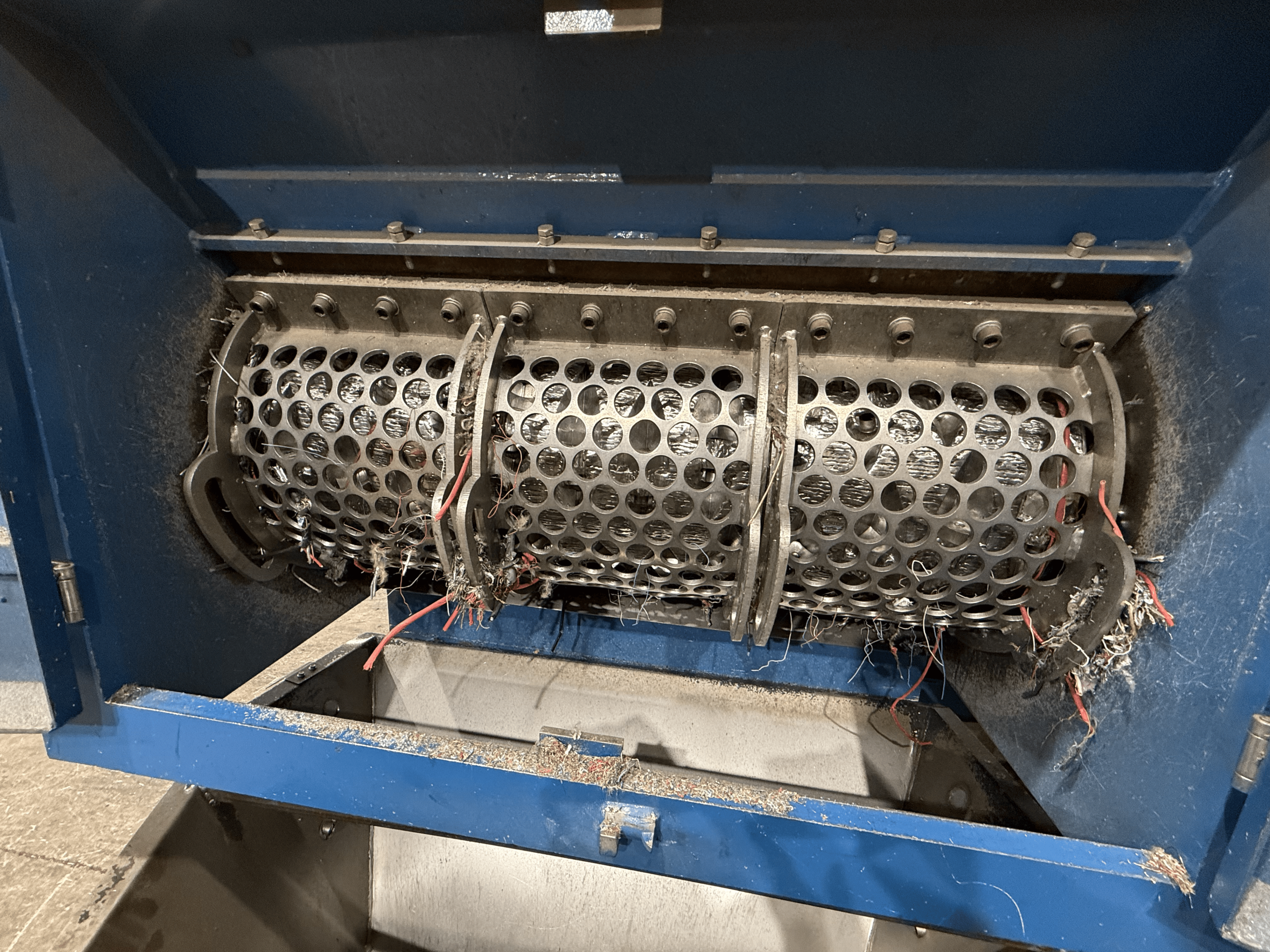

  – Rotor speed: 63rpm, Rotor diameter: 480mm, Rotor blades: 59, Static blades: 3, Ram chamber: 815mm, Discharge height: 675mm, Screen diameter (holes): 40mm, Motor power: 110kw (150hp), Hydraulic power: 5.5kw (7.5hp), Chamber size: 1462mm x 1204mm, Overall dimension: 2843mm x 3044mm x 2307mm, Approximate weight 11,000kg, Optional: Hard Material Rotor & screen + $3,700.00 (included in price).

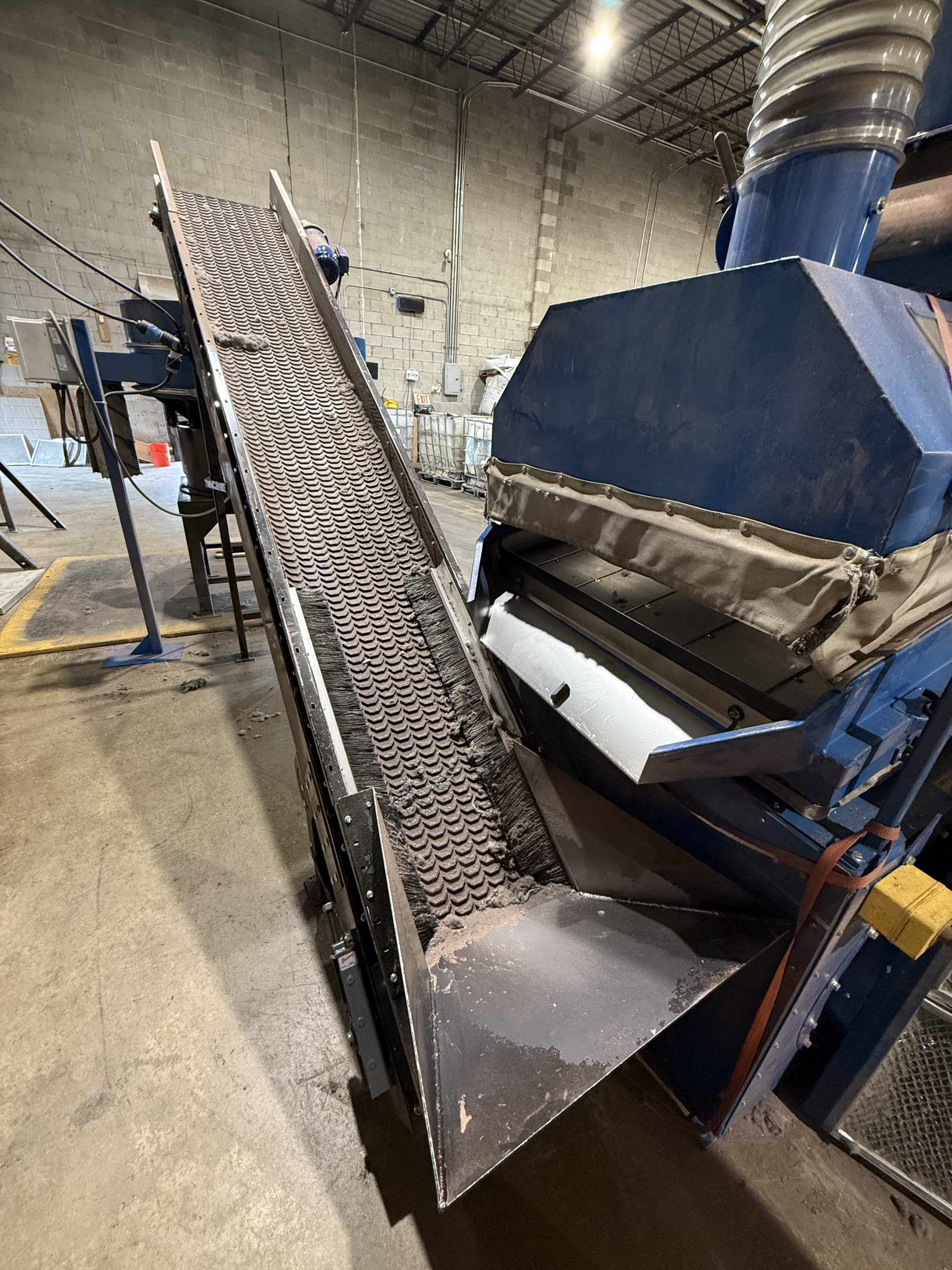

• Conveyor with magnetic head pulley
  Specs:
  – Designed and manufactured in the USA- 24″ wide belt, 28″ overall width, 180″ discharge height @ 30° incline, 360″ long, 312″ long floor space, 1 hp drive motor, 65 FPM, 3-Ply belt. Easily discharge into granulator or gaylord box.
• CMCBM-36
  Specs:
  – 36″ overhead cross-belt magnet with stand, for separation of steel from nonferrous materials, for conveyors up to 36″ wide, designed and manufactured in the USA, 3/4 HP drive, max belt speed of 155FPM, idler pulley improves belt tracking, 18″ wide cleated style belt, 32″ x 16″ permanent magnet, 12″ carry over magnet, weight: 1050 lbs.

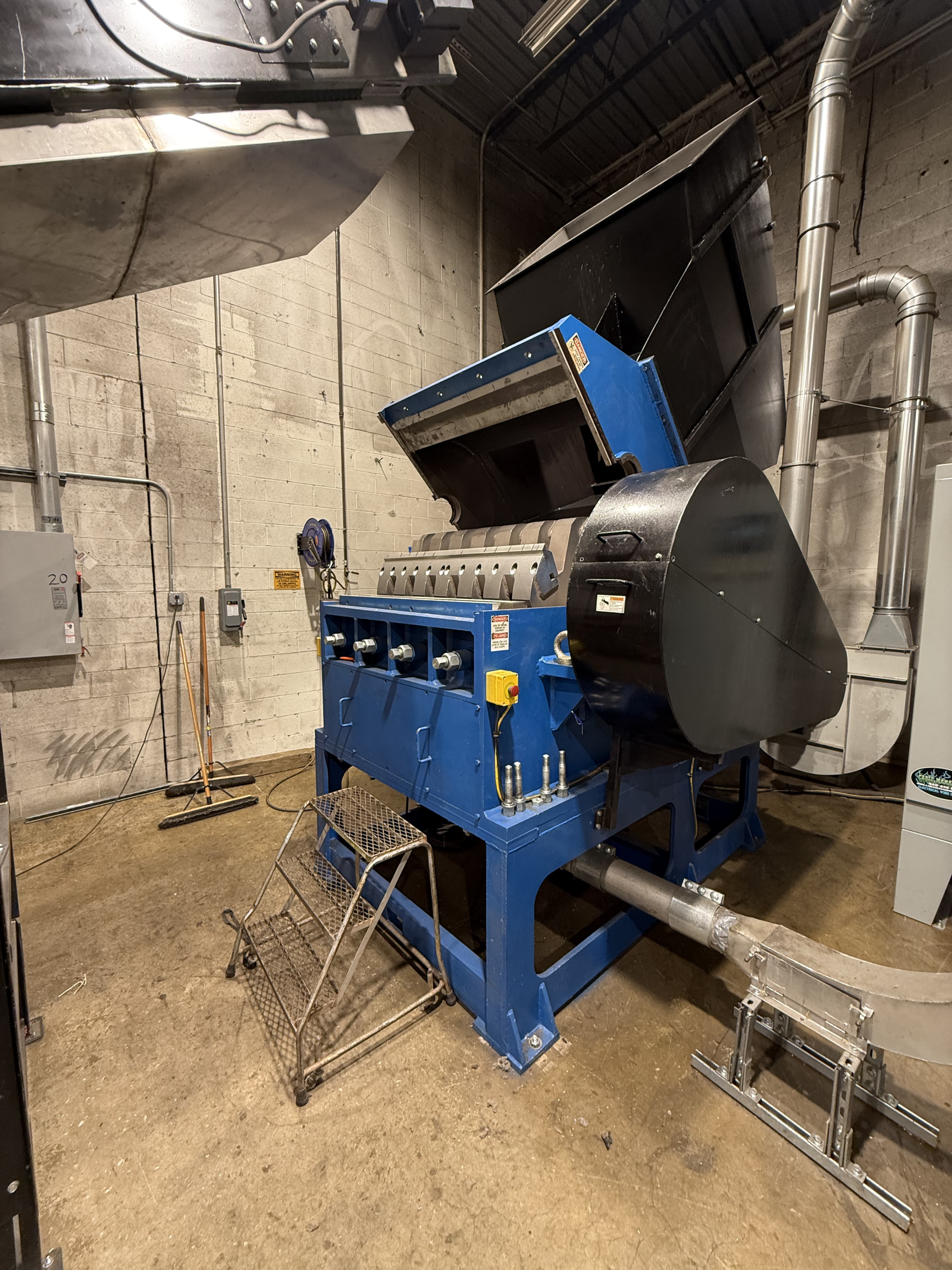

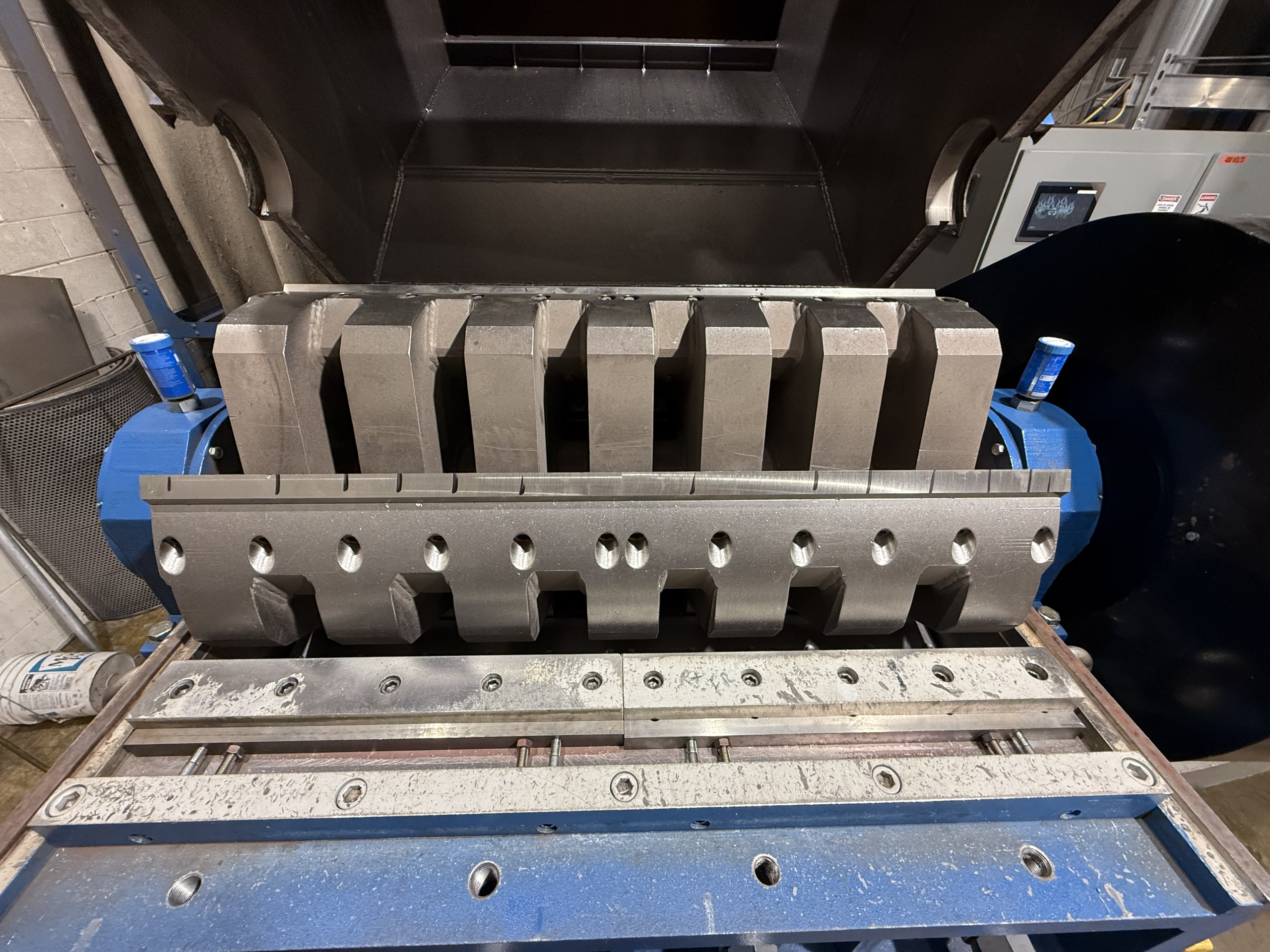

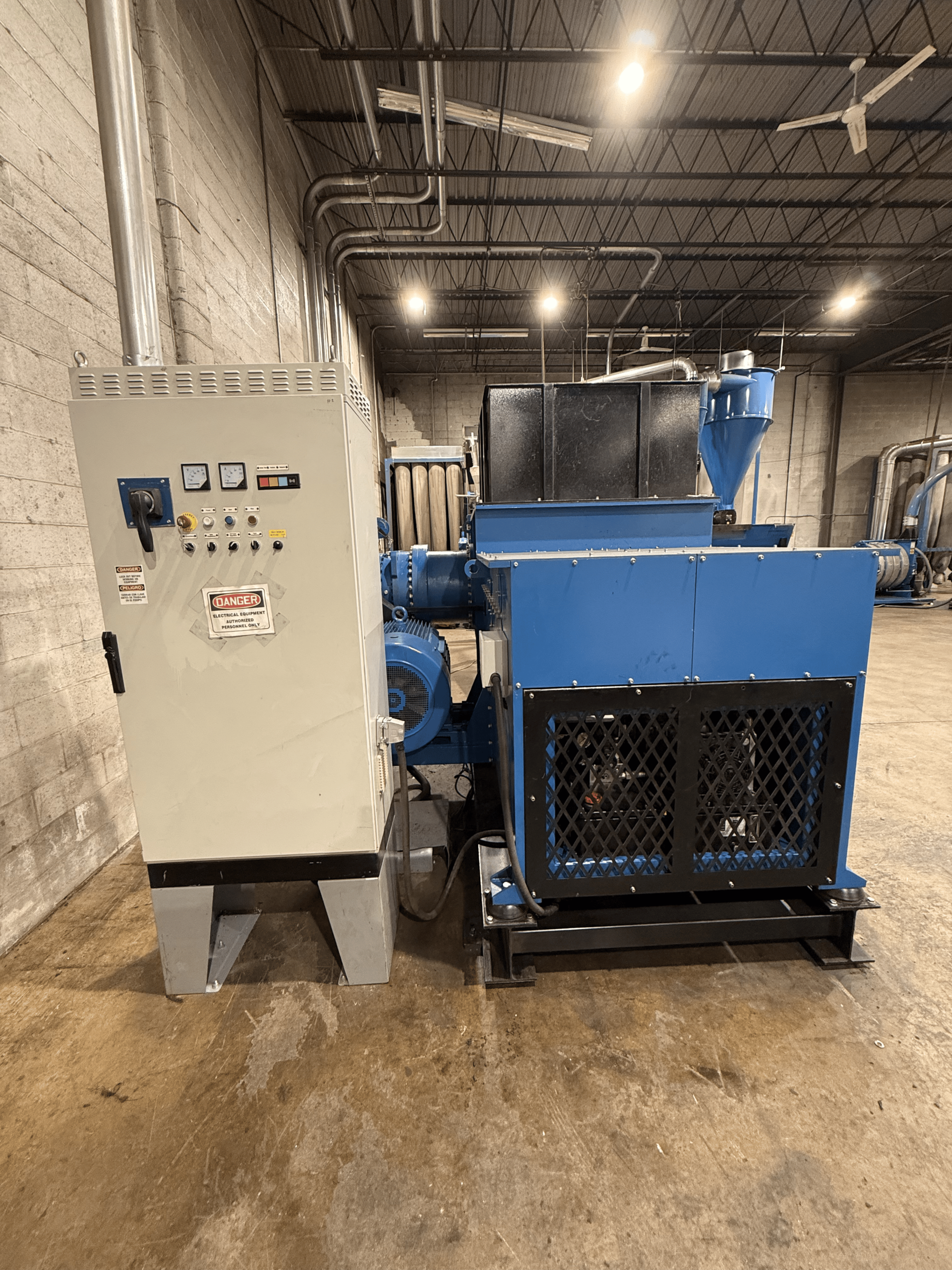

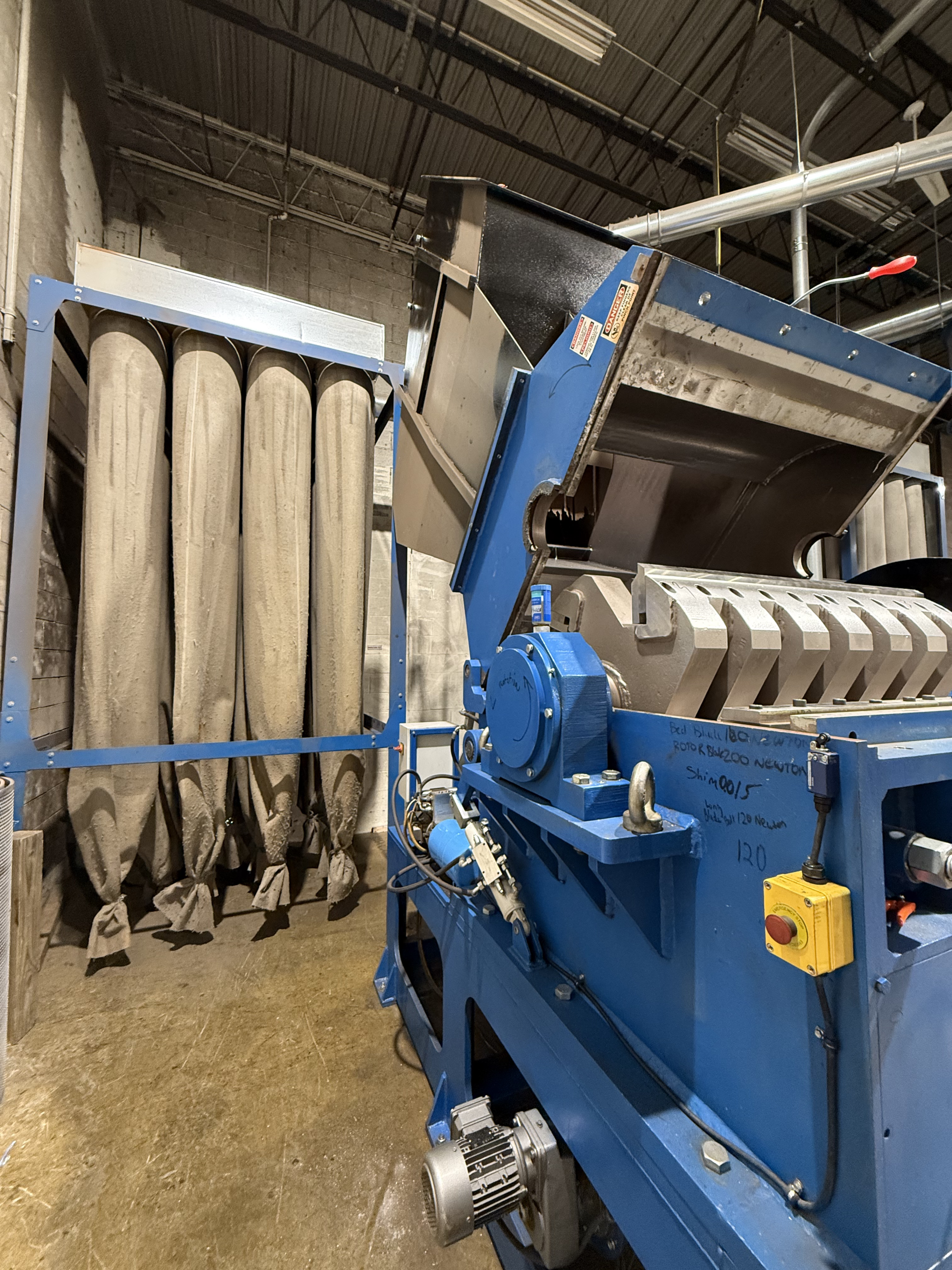

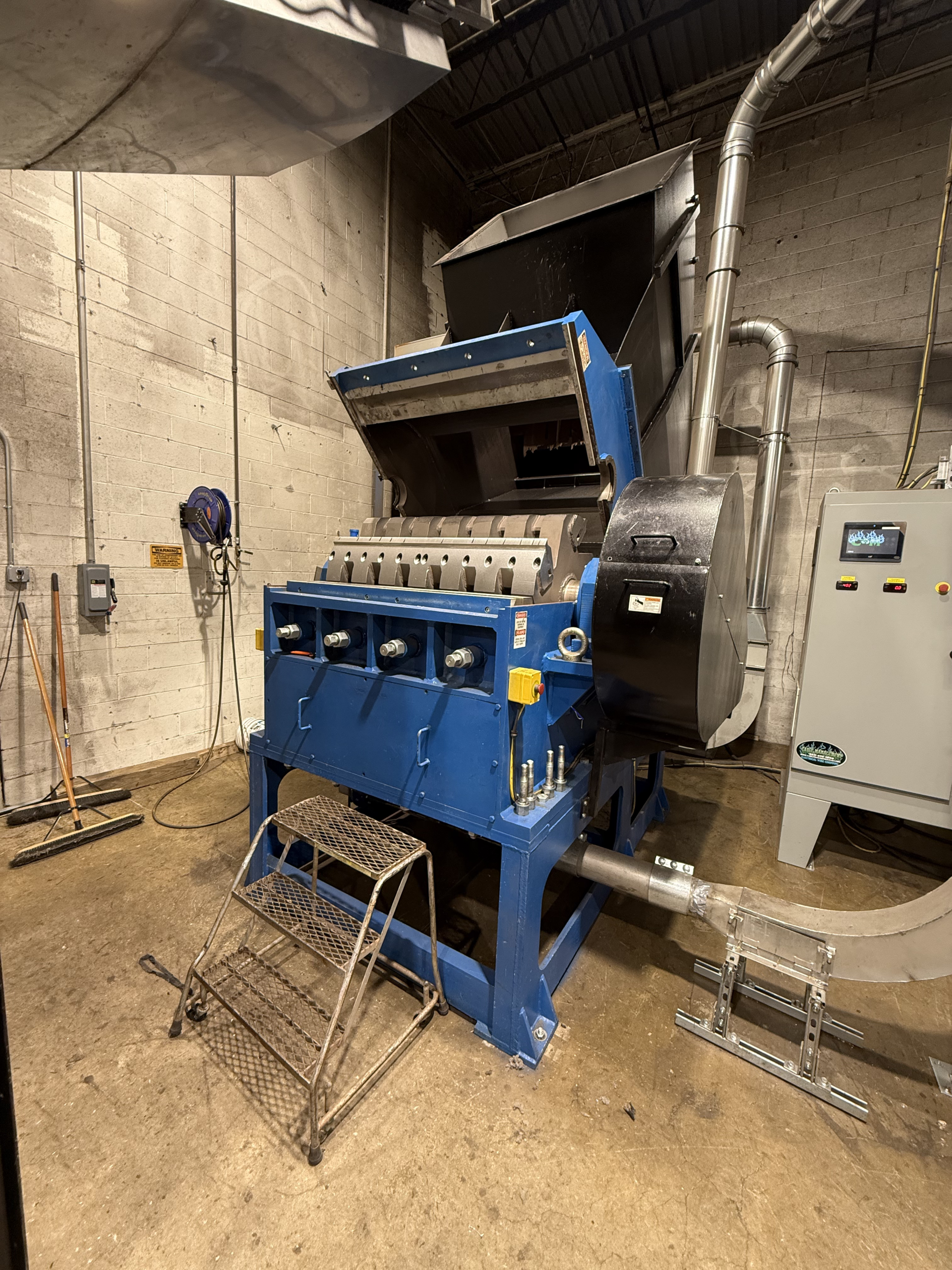

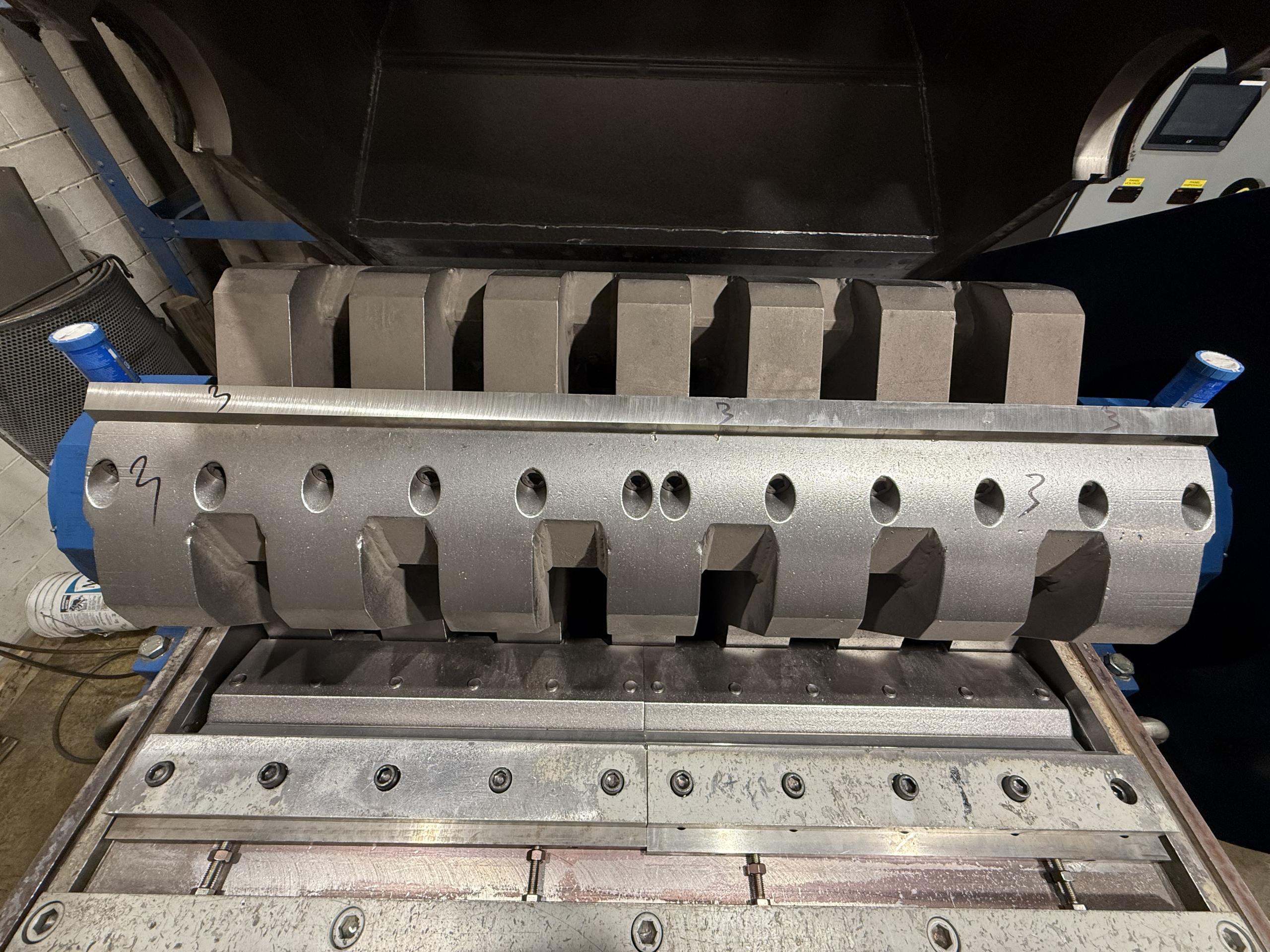

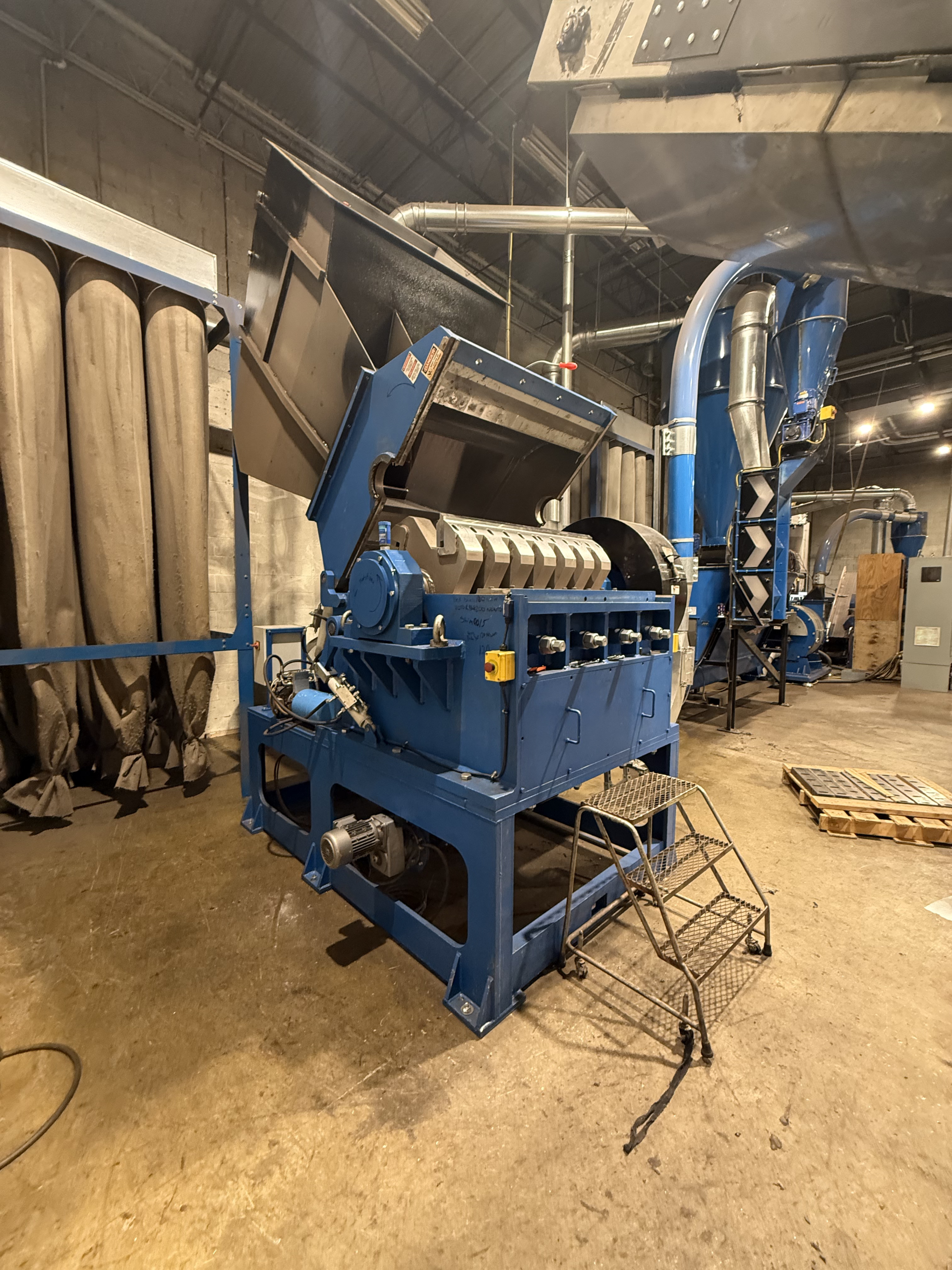

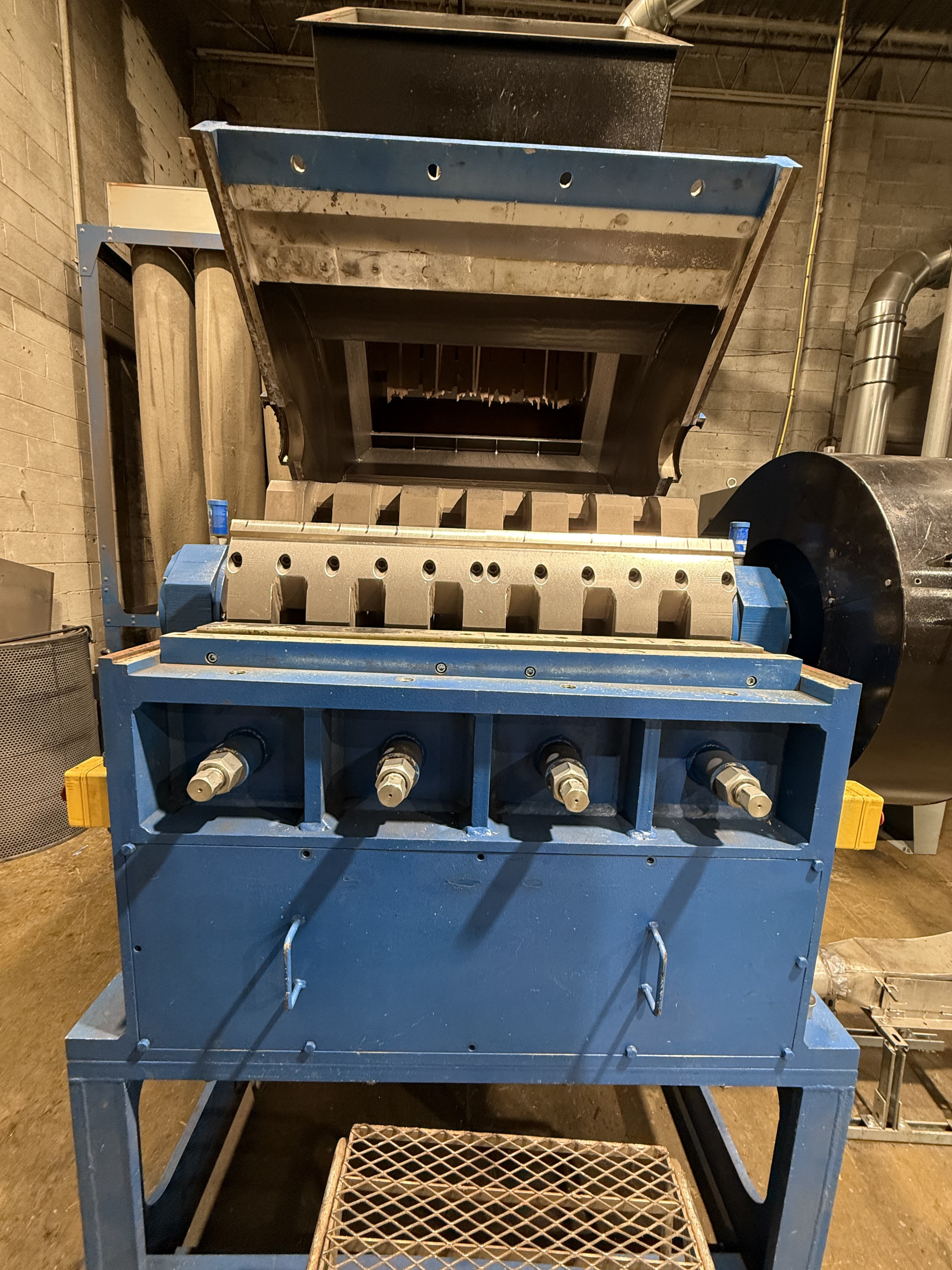

• 3147CM Super Duty Granulator
  Specs:
  – 200HP 460v/3ph/60hz electric motor, freestanding control panel, spare knives, 5/16″ screen, cacuum take-off bin, weight: 26,300 lbs, chamber opening: 31″ x 47″ (all spare parts are readily available in the USA). OPTIONAL: The following options are available at an additional cost: soft start electrical starter, automated in-feed conveyor.

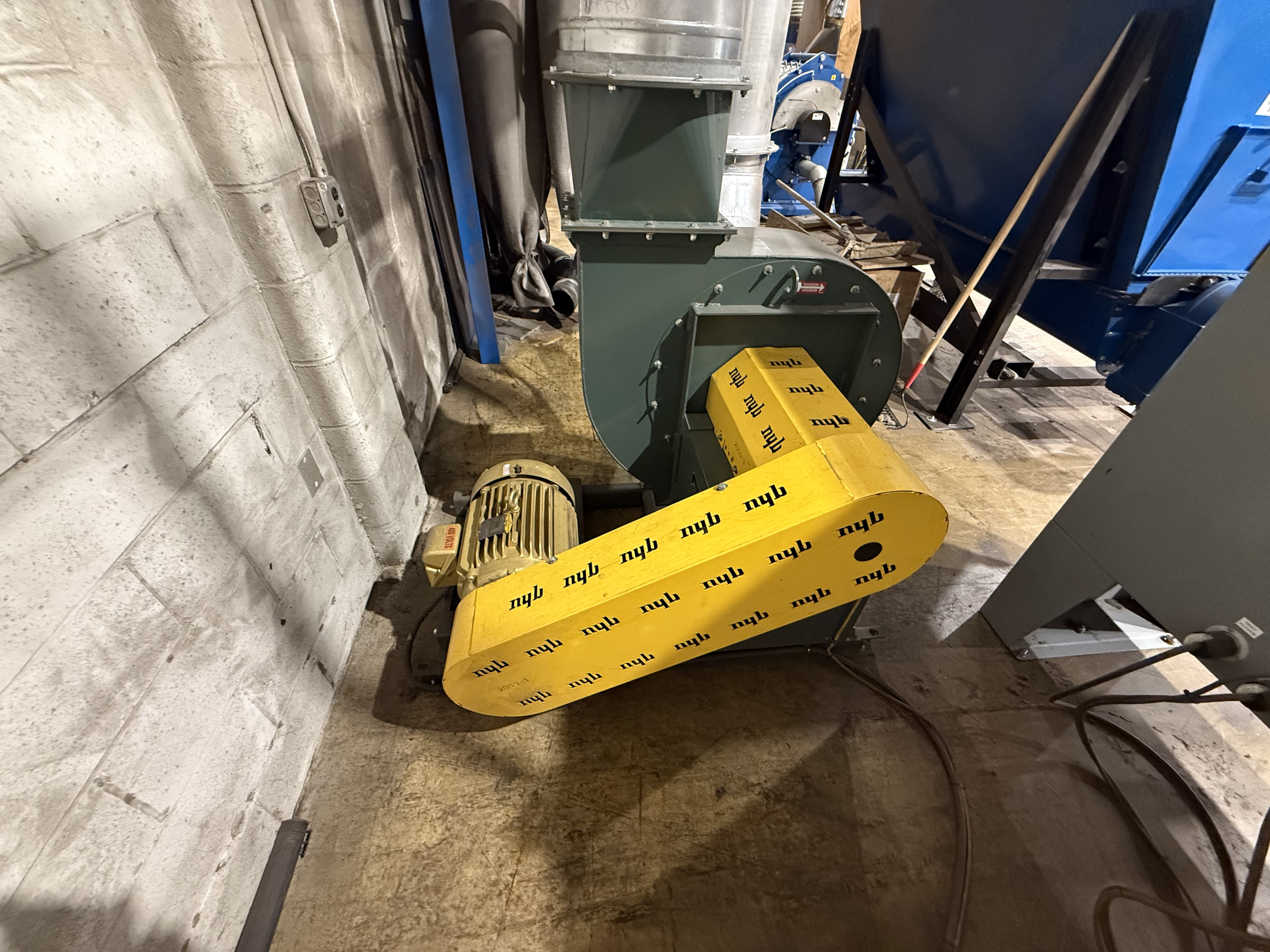

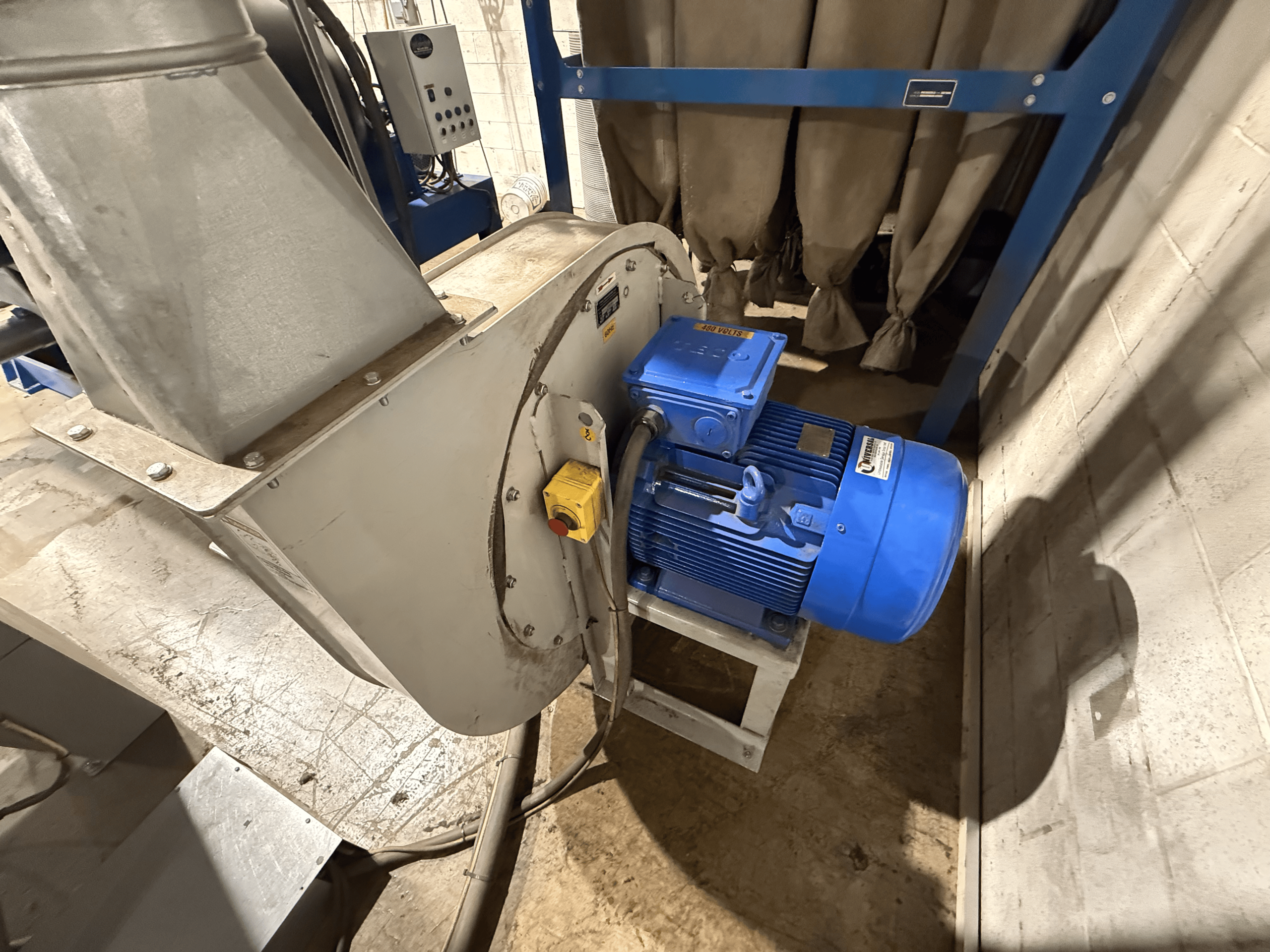

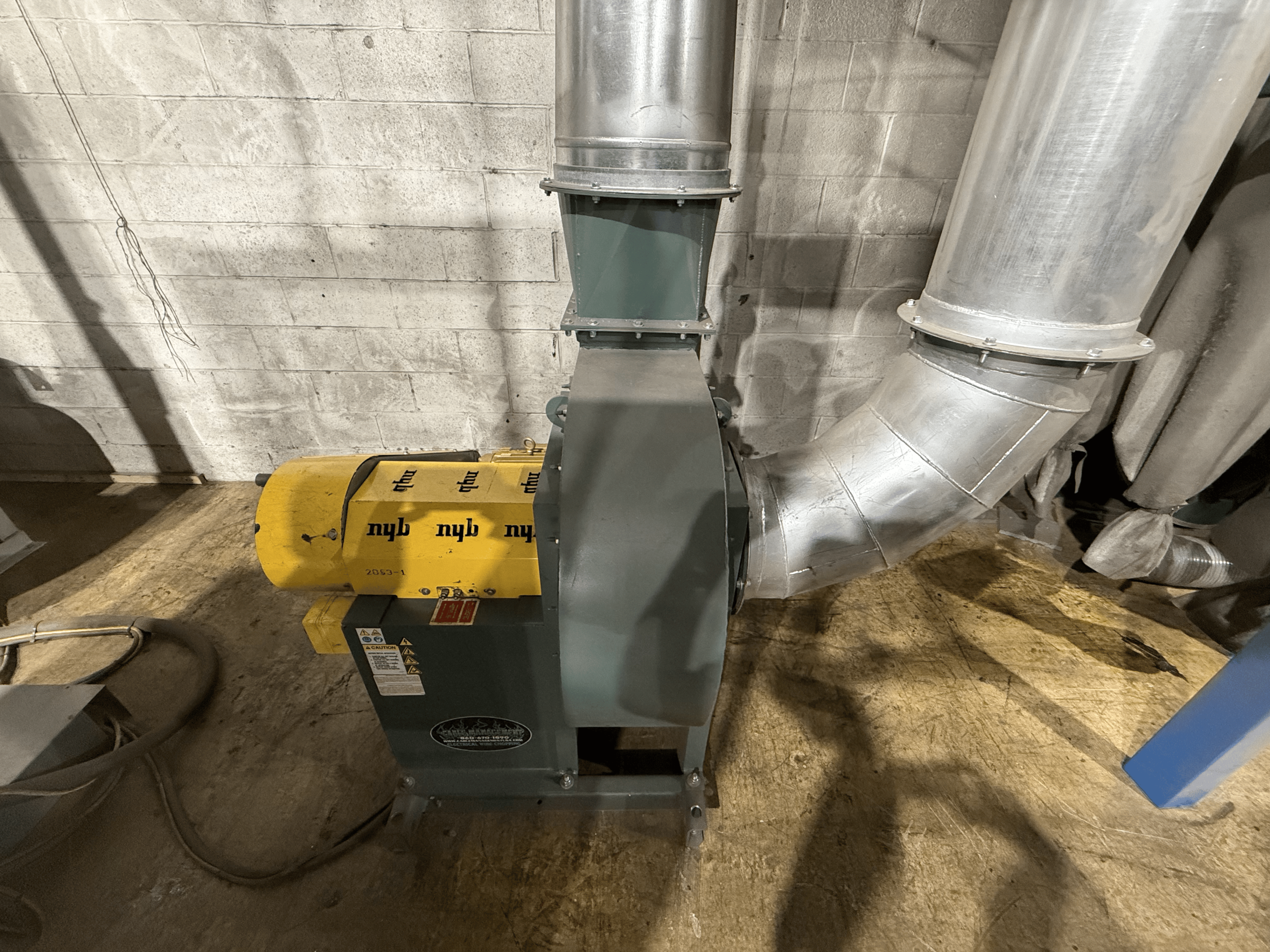

• CMBL-4 EUROLINE
  Specs:
  – Material handling fan with cyclone, airlock, material handling pipes, 50hp, 50hp FVD, quiet operation high pressure blower, short cyclone with clean-out door, 8″ steel conduit with transition at inlet.
• Zig-Zag Separator model CMZZ-12
  Specs:
  – Top mounted rotary airlock valve, side draft adjustable openings, cyclone, blower, pipes, filterbox.

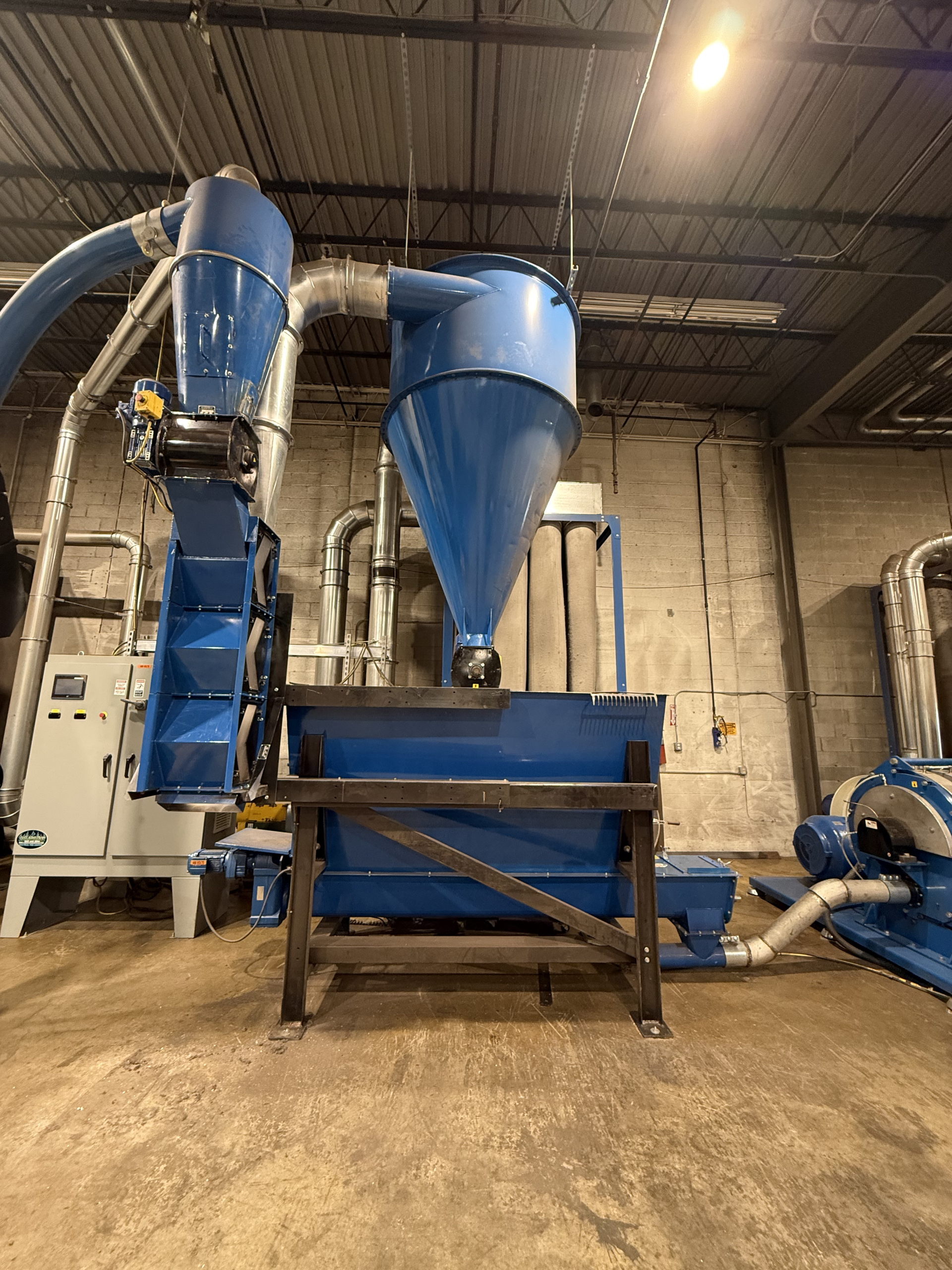

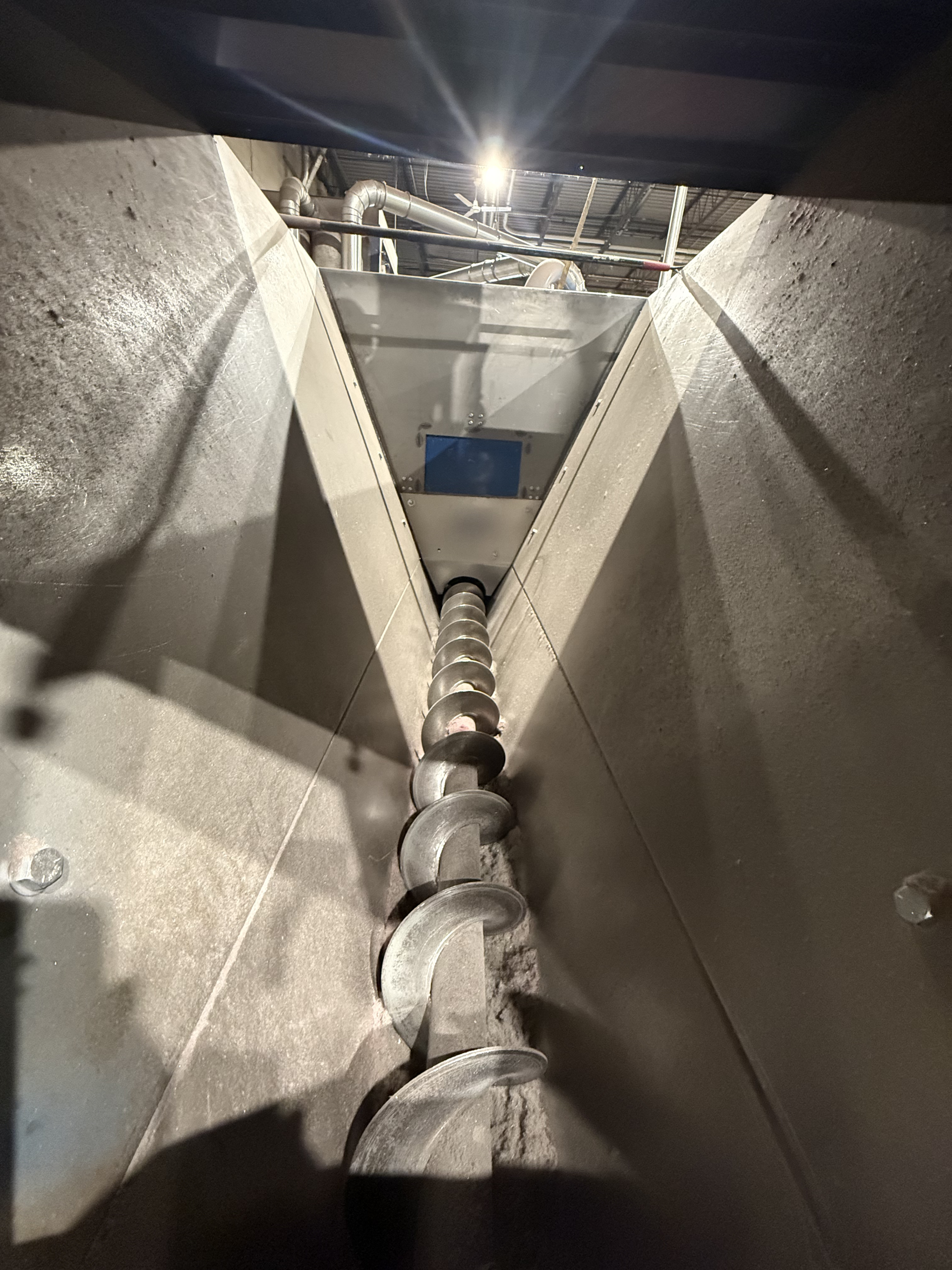

• CMDH-#2 DOSING HOPPER
  Specs:
  – Automatic dosing hopper, 60″ x 157″ x 97″, open top, integral slow bottom feed screw, vacuum drop-out discharge, approximately 100 cubic ft.

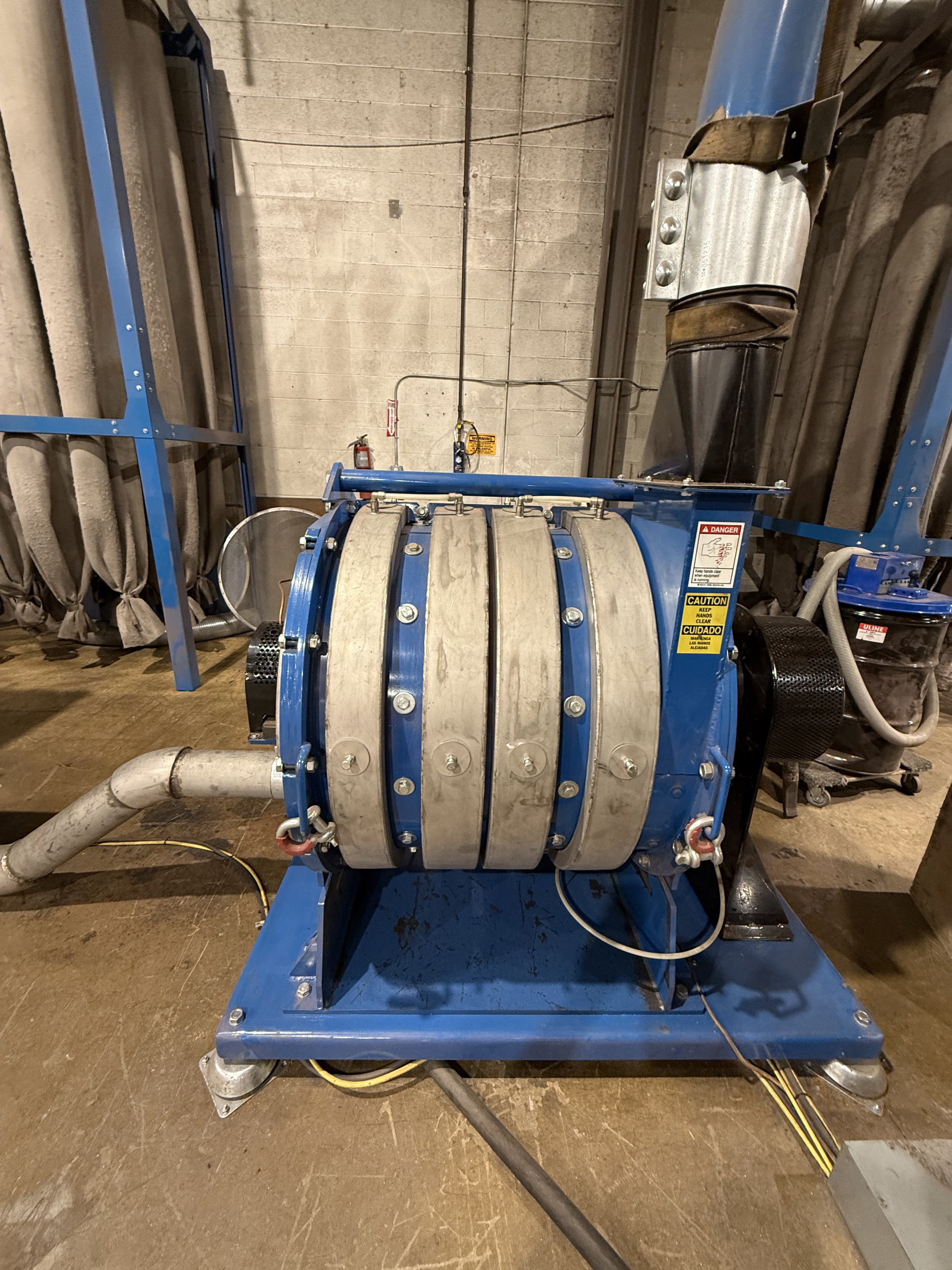

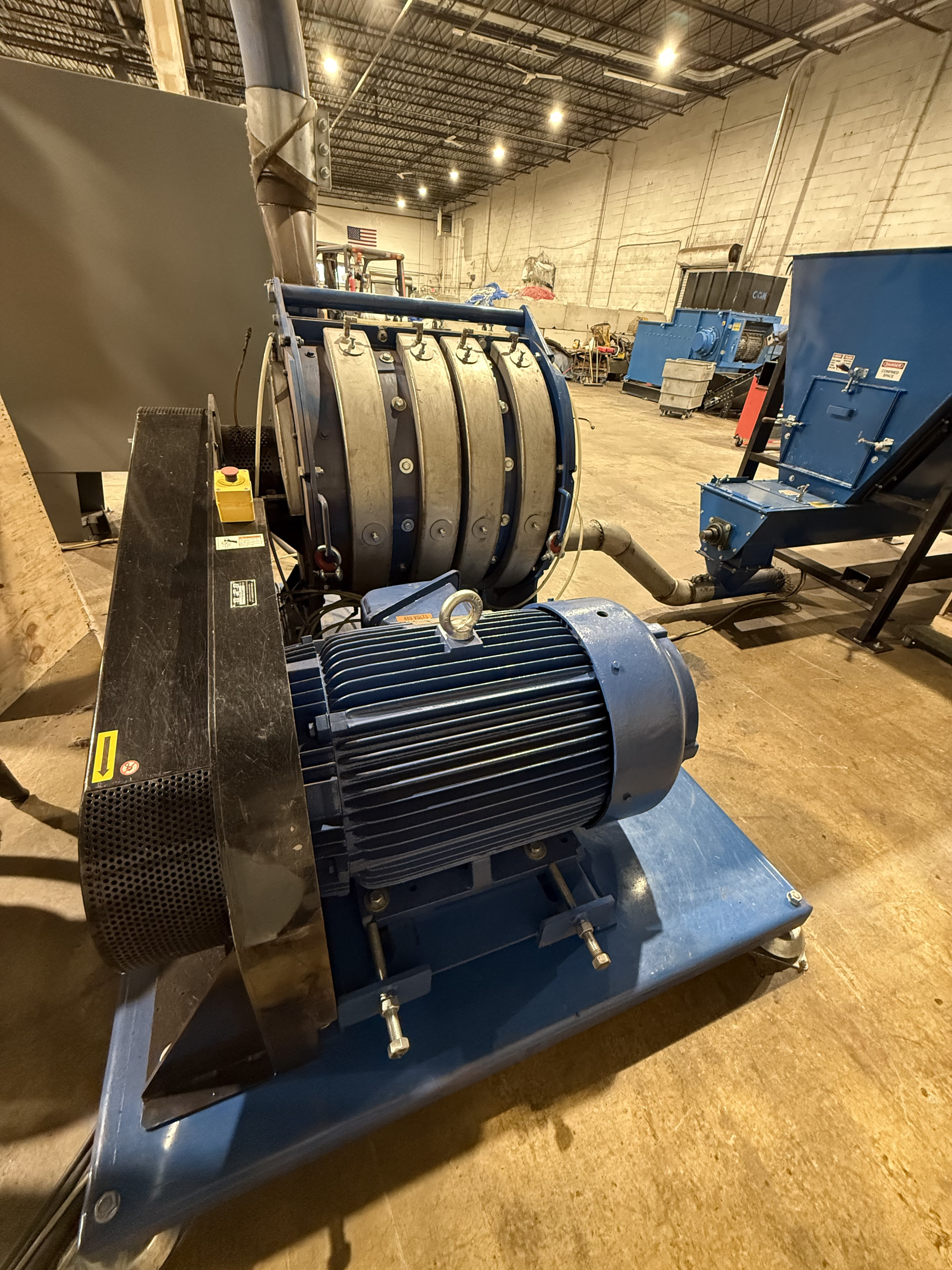

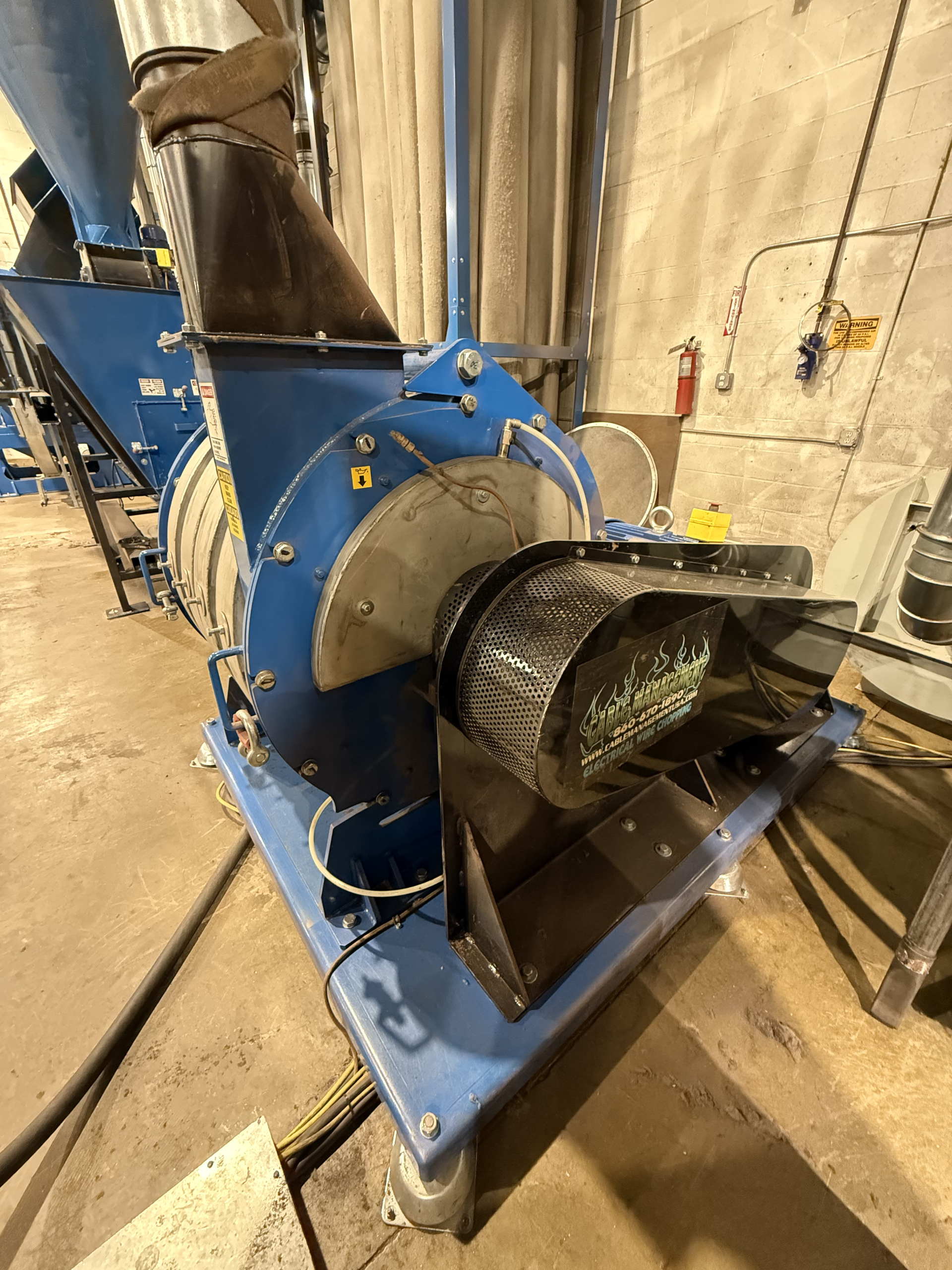

• CMTM-1500 Clam-Shell Turbo-Mill
  Specs:
  – Designed to grind rigid and semi rigid materials into a fine particle sizes smaller than 1/16″ in diameter. Capacity of the machine is determined by the rigidity of the materials and particle size. 200hp TEFC 360/230/460 3ph electric motor FVD, carbon steel plate body, easily interchangeable steel wear plates and beater knives.
• CMBL-4 EUROLINE
  Specs:
  – Material handling fan with cyclone, airlock, material handling pipes, 50hp, 50hp FVD, quiet operation high pressure blower, short cyclone with clean-out door, 8″steel conduit with transition at inlet.

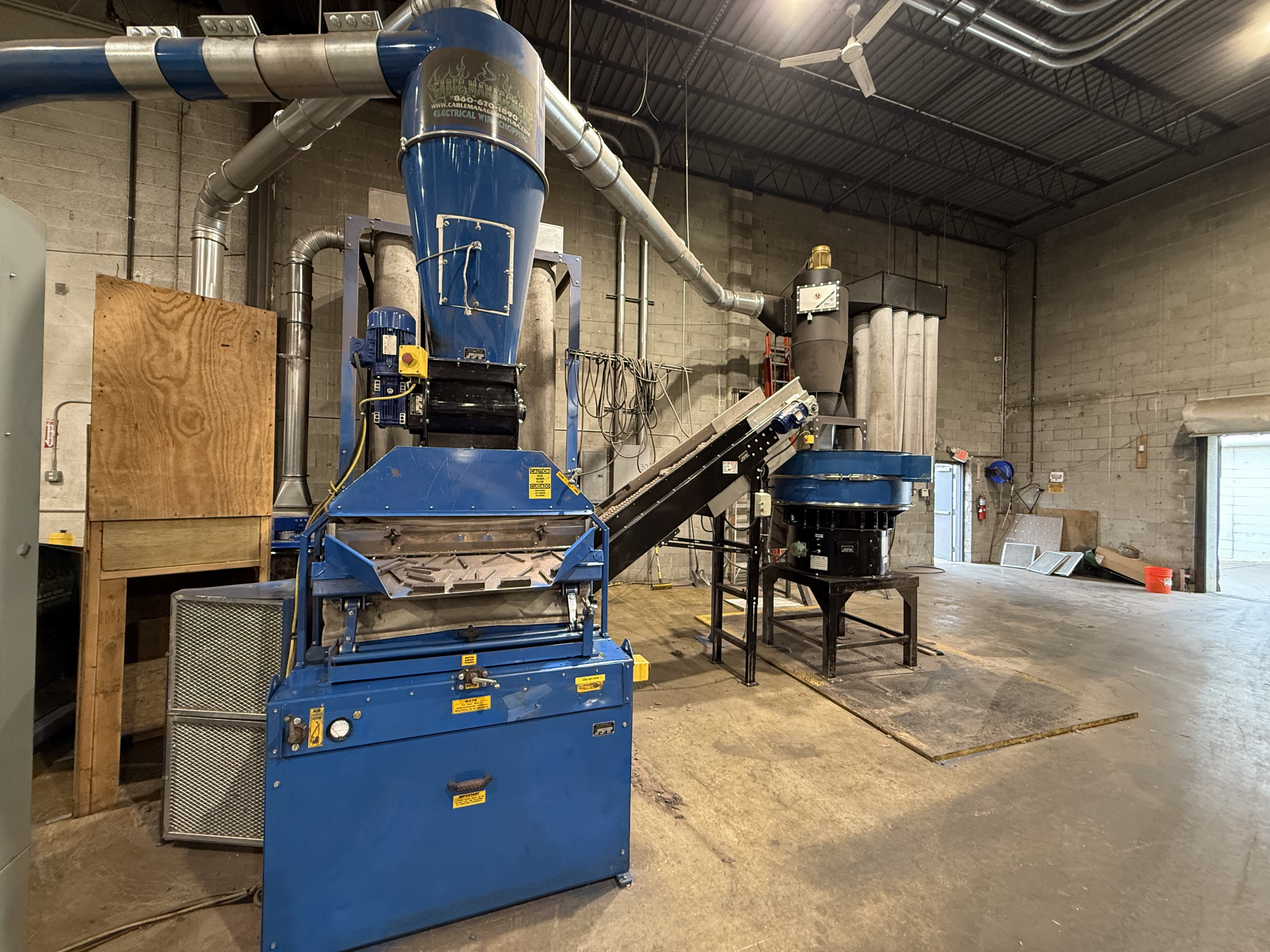

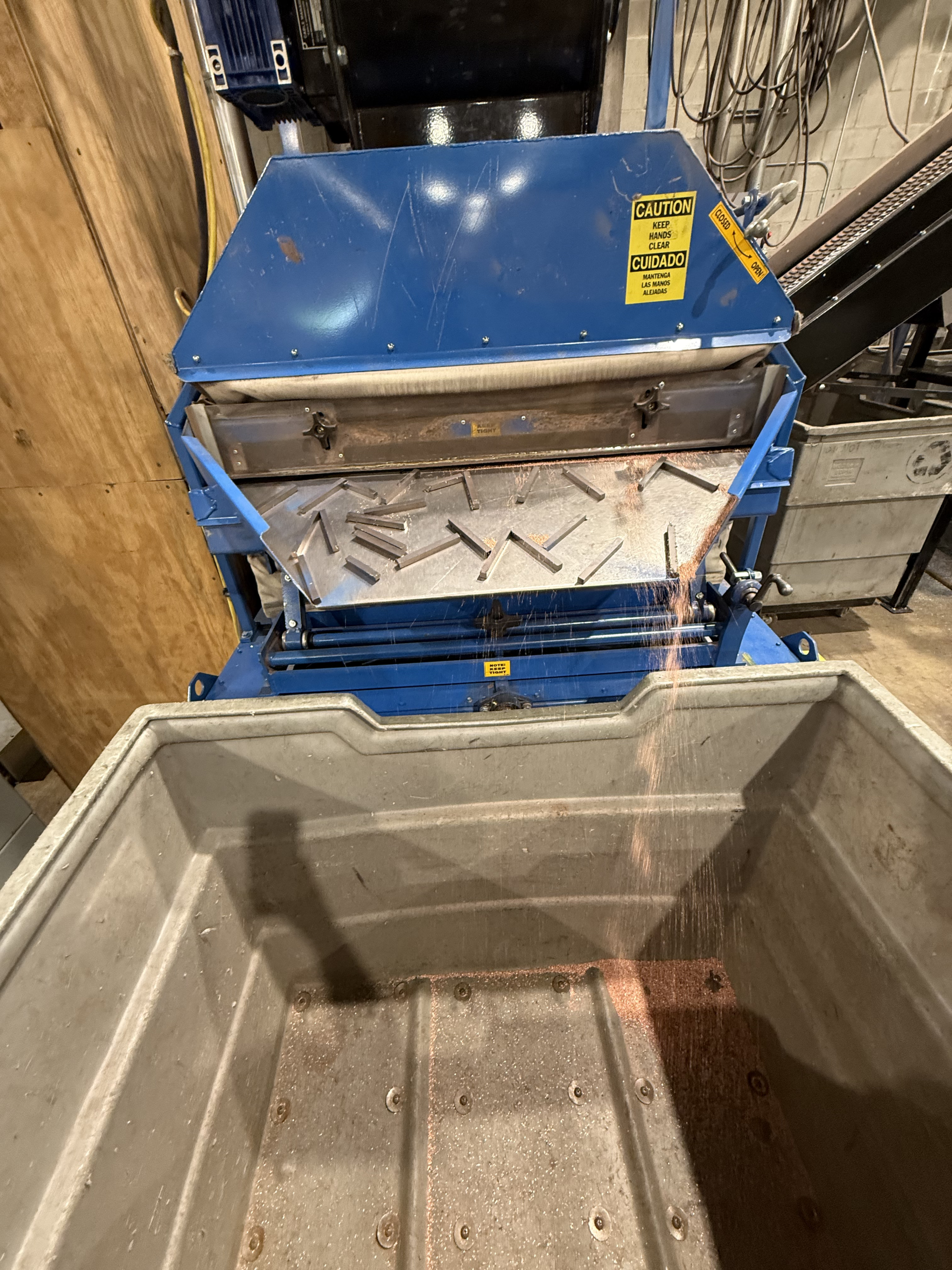

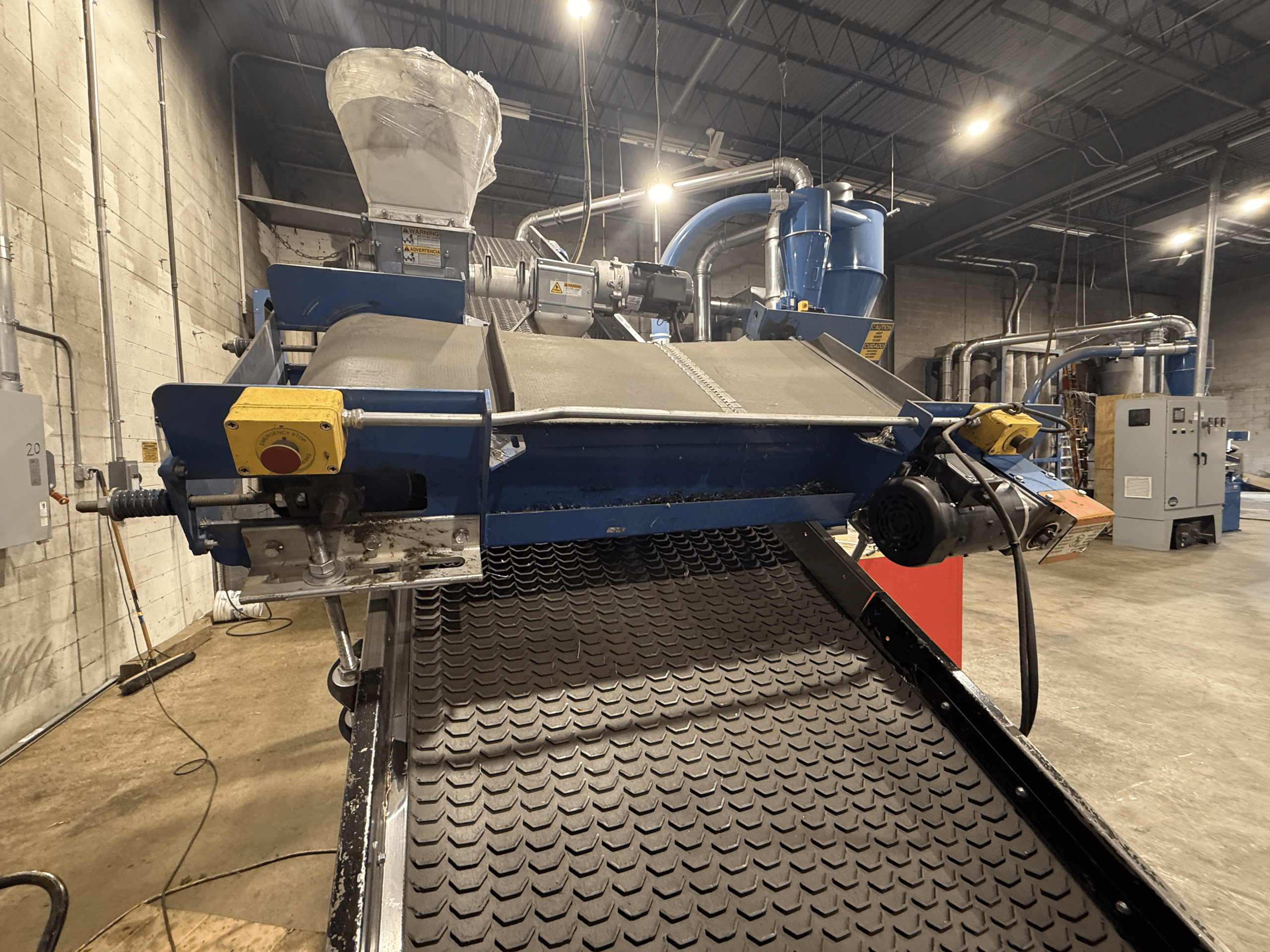

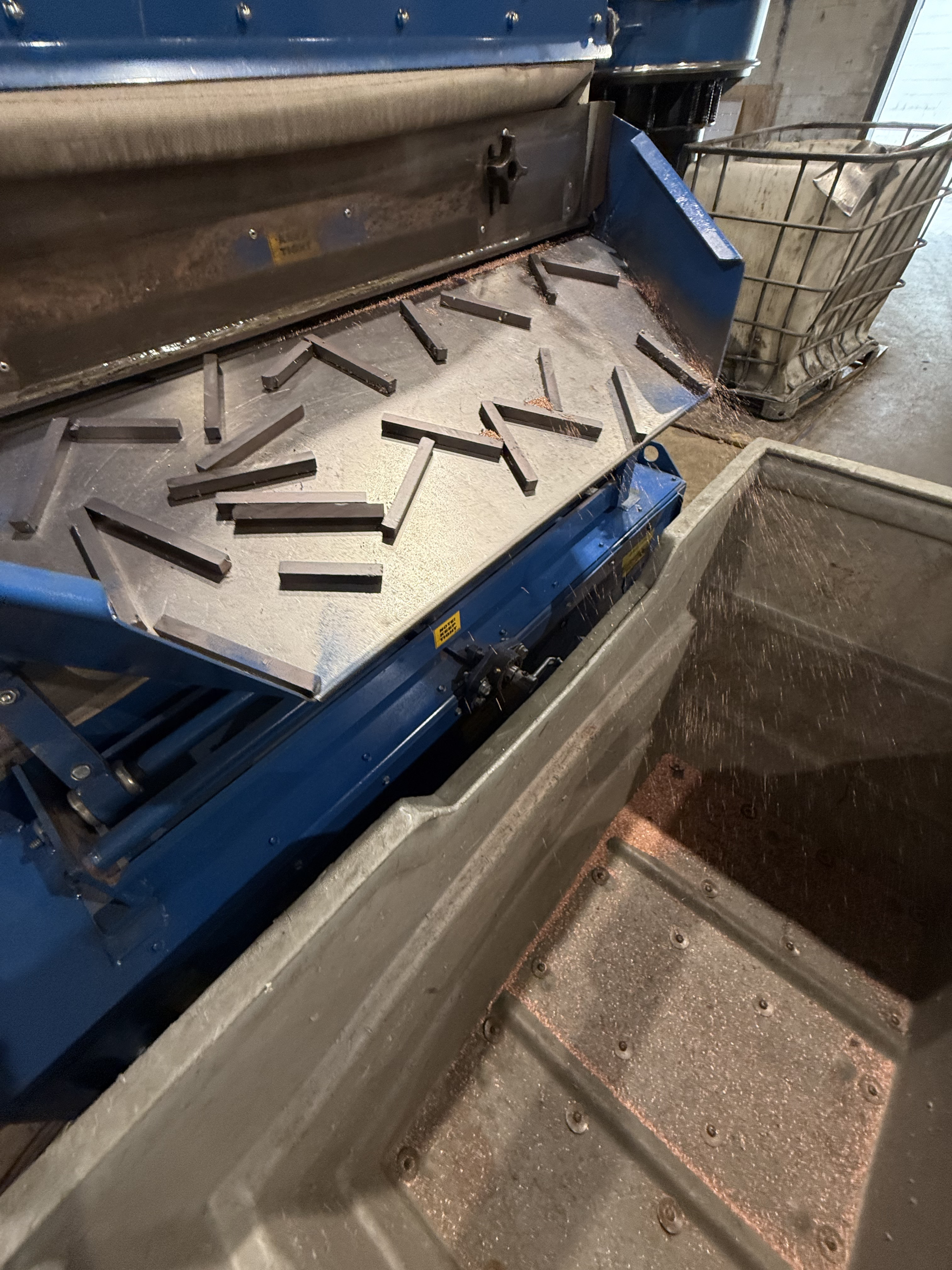

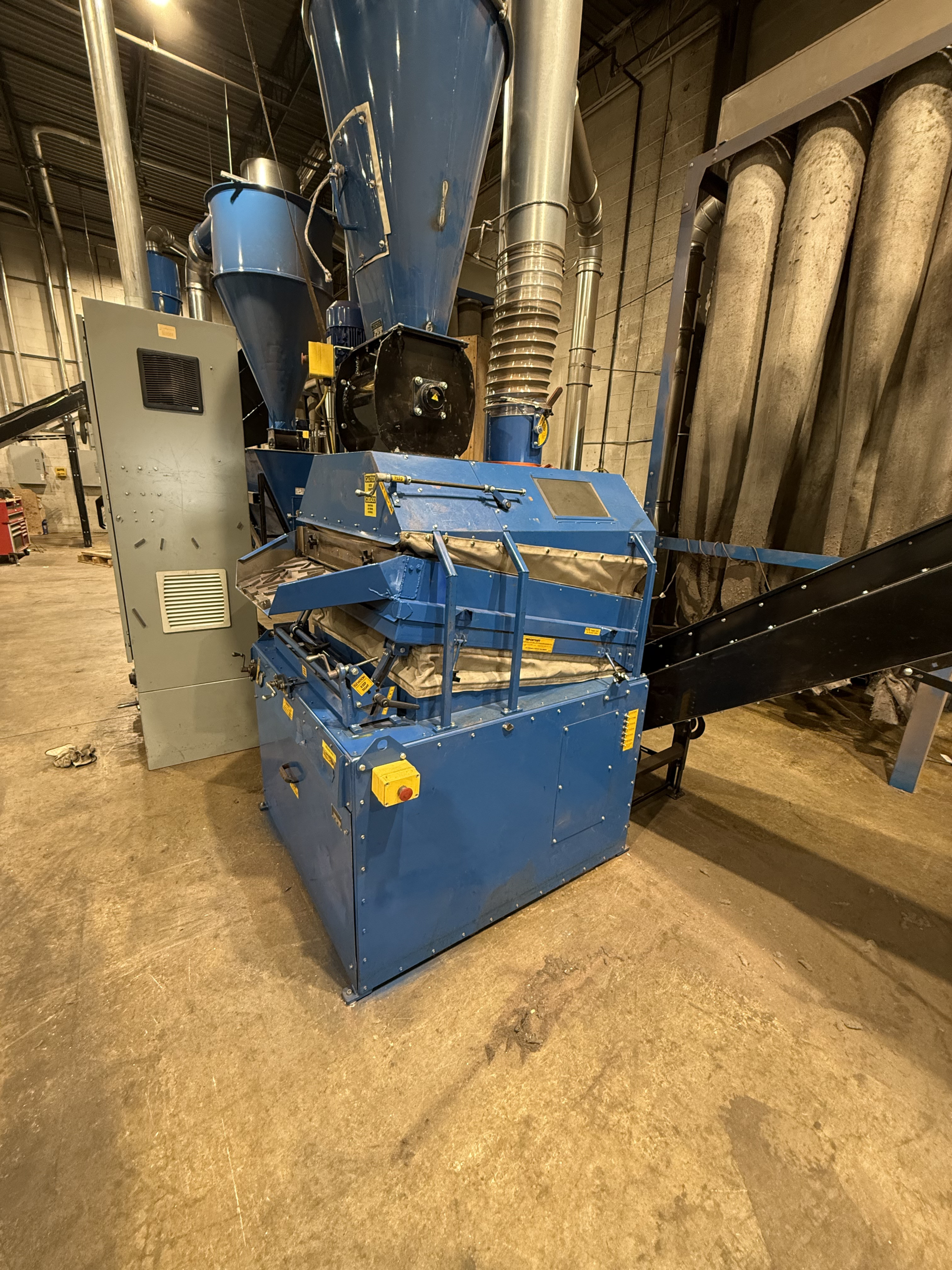

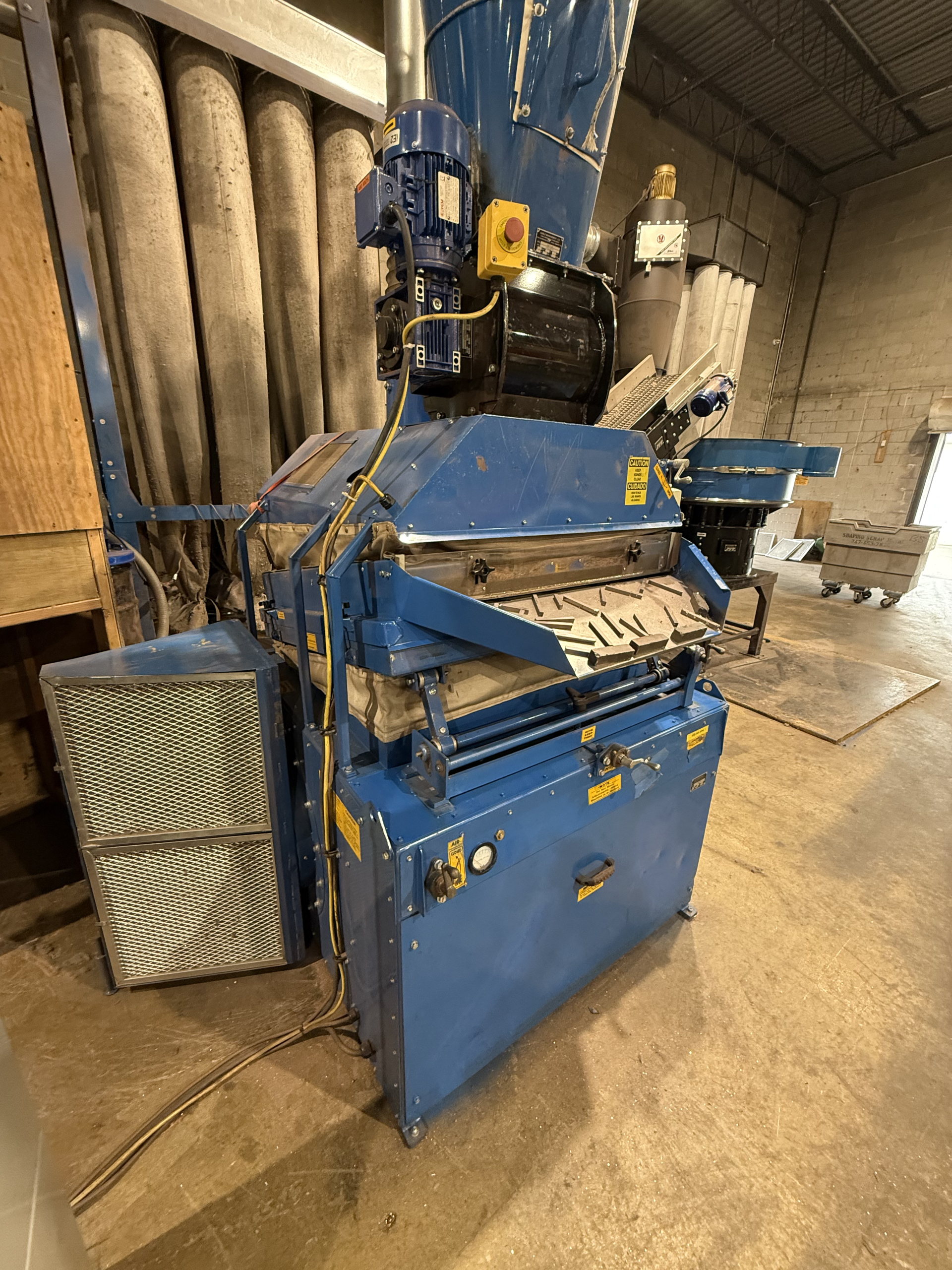

• CMC5-TO C5-TO (separation table only)
  Specs:

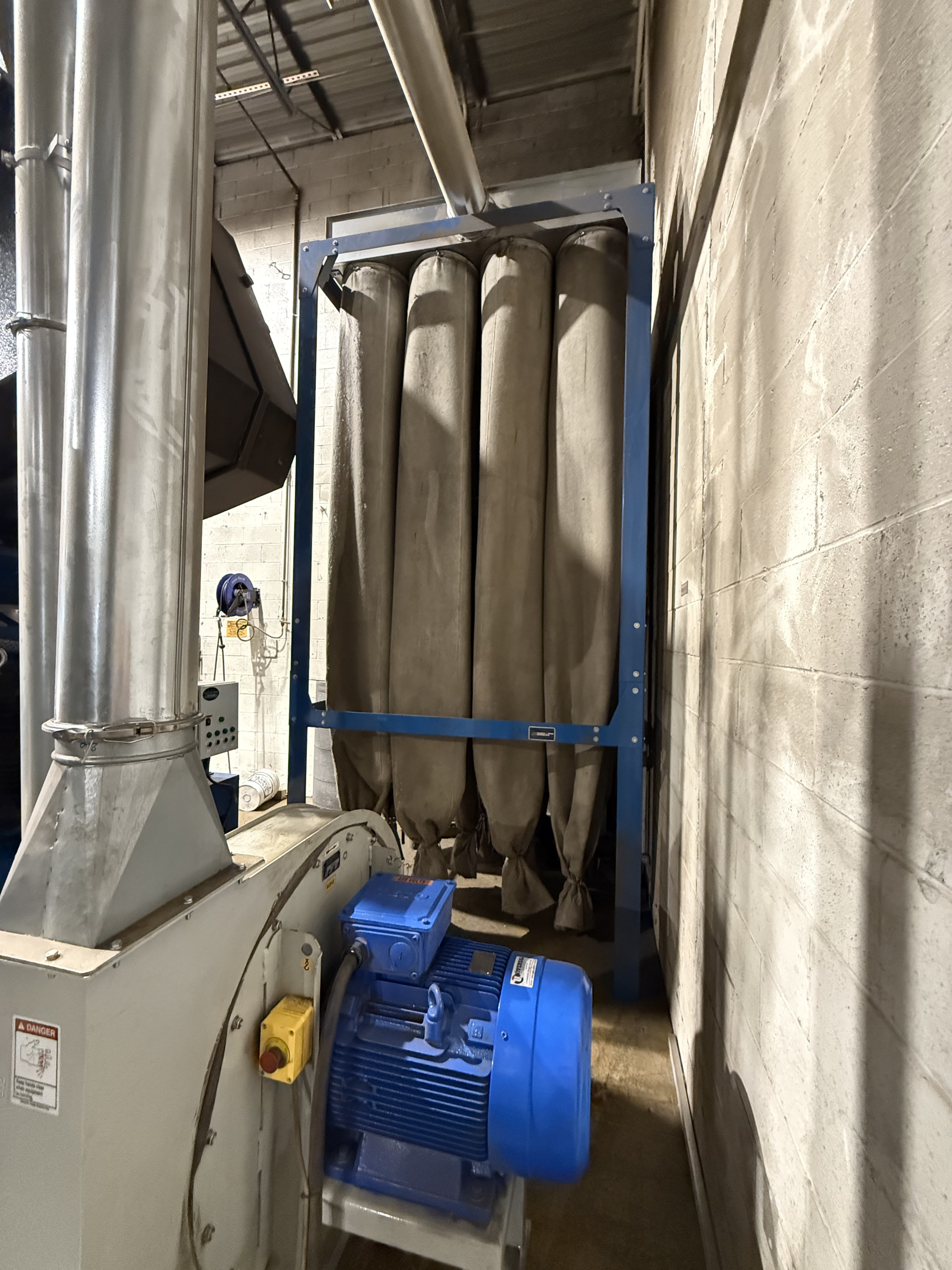

  – New air separation system capable of separating up to 5000-6000lbs/hr*, 12.712 sq. ft. of separation area, constructed in carbon steel, full dust hood, 5 HP, TEFC 360/230/460 3ph electric motor, power station mounted on pedestal including all disconnects and motor controls, 2 stainless steel deck covers for the separation surface, filter with filter-box providing a clean air supply to the separating table, stand alone 10HP industrial dust collector, 220V/440V*, 3-phase, TEFC, 26A/13A, 3450 RPM, air suction capacity: 5360 CFM.
• CMC 4.5′ HT-MH 18″ Conveyor with magnetic head pulley
  Specs:
  – Designed and manufactured in the USA, 18″ wide belt, 22″ overall width, 54″ discharge height @ 30° incline, 98″ long, 94″ long floor space, 1/2 hp drive motor, 65 FPM.

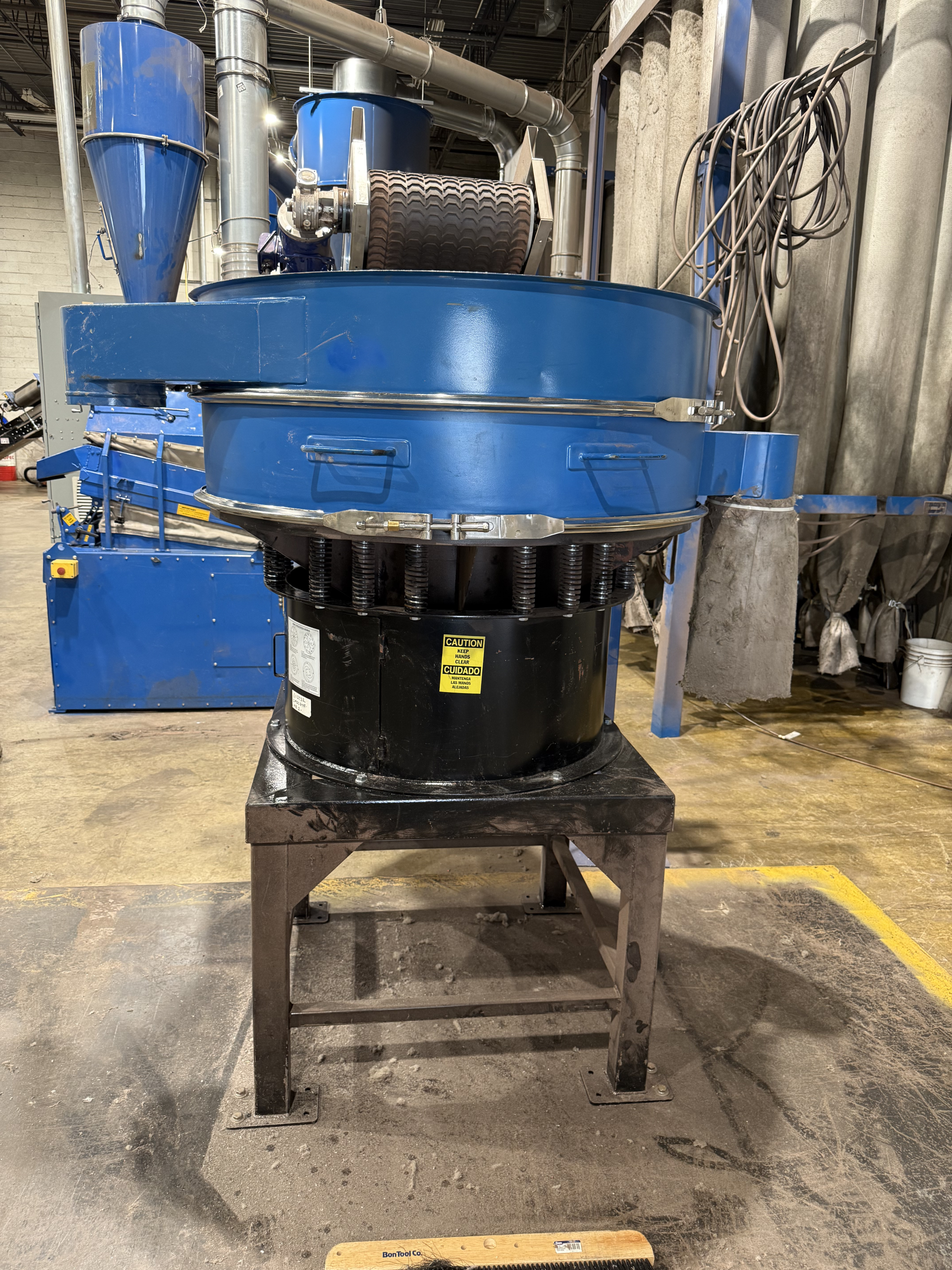

• CMSCGYR-40-1(480-3P-60HZ)
  Specs:
  – Single-deck self-balancing 40″ gyratory screener 40″, 2 fractions, mild steel construction, fitted with suitable S.S.304 screens, adjustable three plane motion, anti-blinding PP rings, perforated sheet beneath the mesh, supported on steel base designed for floor mounting, vibrating assembly is isolated by a spring assembly, complete with 1 HP special vibrating totally enclosed motor 480V-60hz 3Phase electric motor, top and bottom eccentric weights and lead scale indicator with top dust cover.

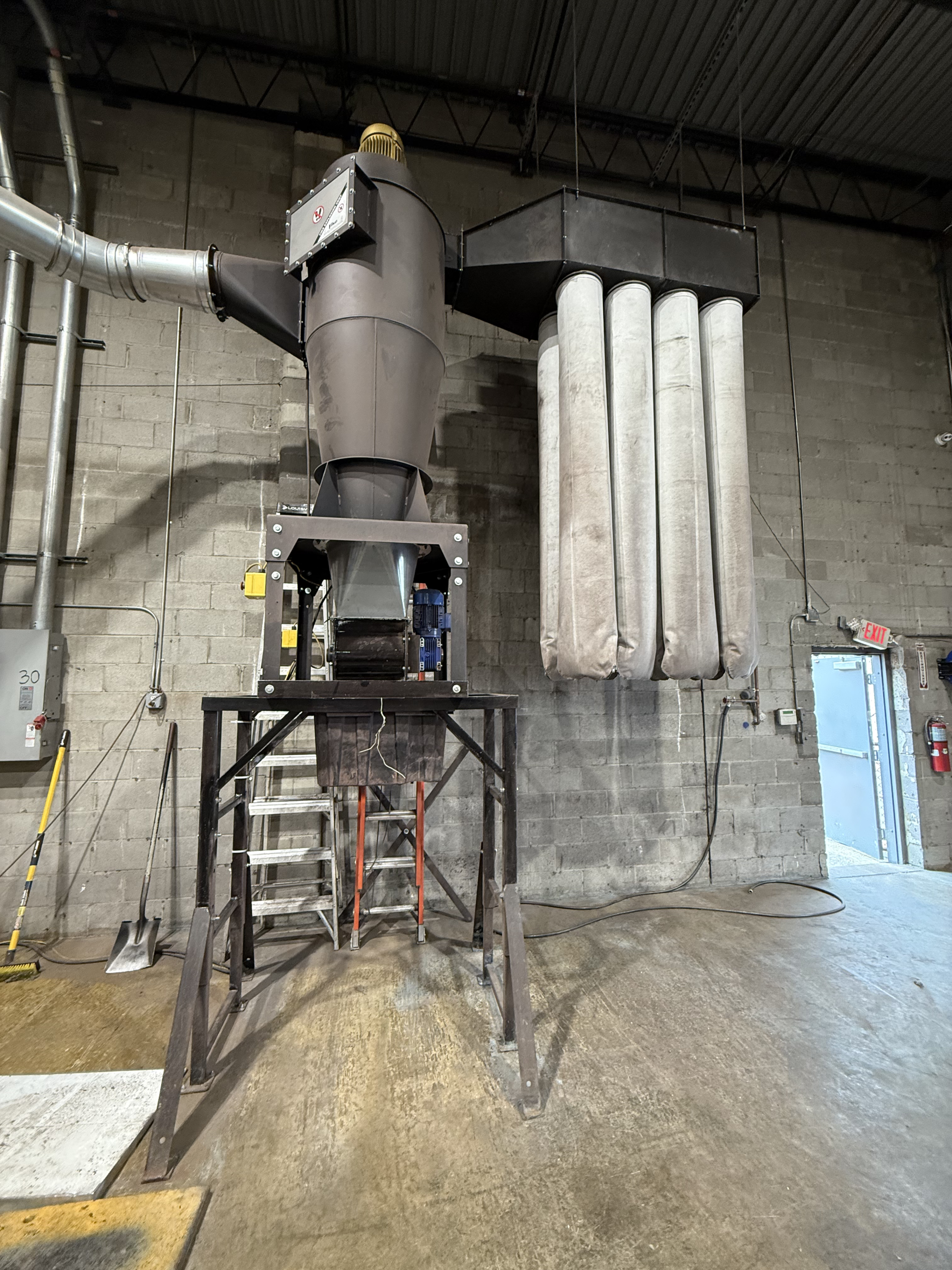

• Torit-15 Cyclone Dust Collector
  Specs:
  – 15 Hp Motor, 12″ inlet, 5600 CFM, 30-15 CYC – AW w/ explosion vent.
