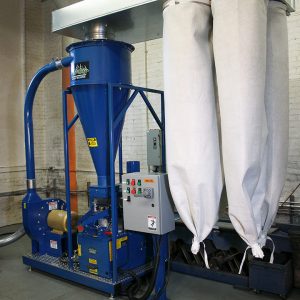

C1 Wire Chopping Line / Copper Separator

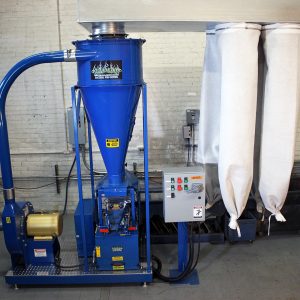

C1 Wire Chopping Line / Copper Separator - Image 2

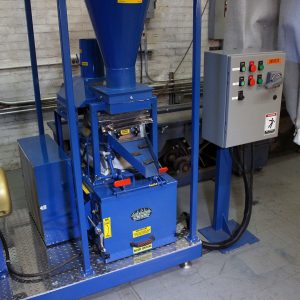

C1 Wire Chopping Line / Copper Separator - Image 3

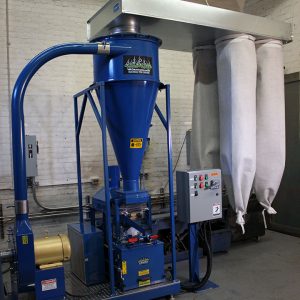

C1 Wire Chopping Line / Copper Separator - Image 4

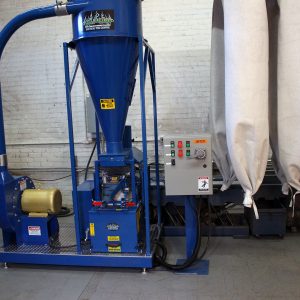

C1 Wire Chopping Line / Copper Separator - Image 5

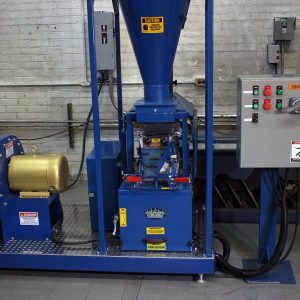

C1 Wire Chopping Line / Copper Separator - Image 6
C1 Wire Chopping Line / Copper Separator - Image 7
C1 Wire Chopping Line / Copper Separator - Image 8
C1 Wire Chopping Line / Copper Separator - Image 9
C1 Wire Chopping Line / Copper Separator - Image 10
C1 Wire Chopping Line / Copper Separator - Image 11
C1 Wire Chopping Line / Copper Separator - Image 12

C1 Wire Chopping Line / Copper Separator

Call for Price

C1 Wire Chopping Line / Copper Separator

This unit will enable you to separate different density materials such as copper / plastic, aluminum / plastic, aluminum / copper and much more.
All you need is a granulator to chop the copper before it goes into our state of the art system.
We can sell you this unit alone or a complete system including the granulator.
It will separate up to 1000lbs/hr.

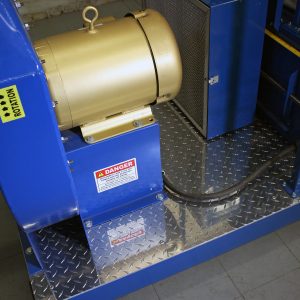

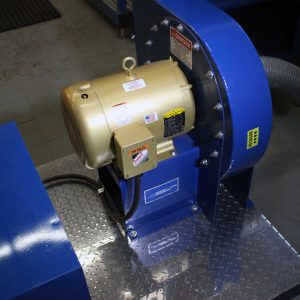

The C1 comes with a 7.5hp Baldor blower capable of moving copper chops from the granulator to the separation table.

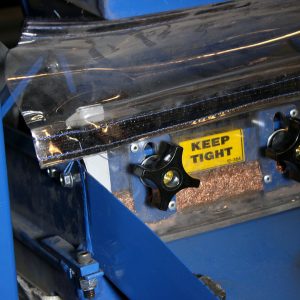

The separation table is powered by a 1hp Baldor motor

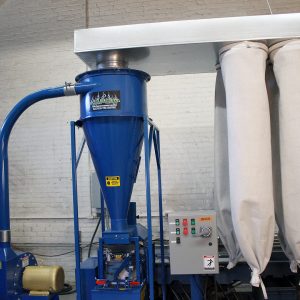

And the dust is evacuated by a 3hp dual bag dust collector.

Category: SKU: C1

Description

*Custom systems from 200 lbs – 10,000 lbs/hr available.*

Use chart below to compare our most popular compact systems.

MODEL C1
(25hp granulator)		 C1 deluxe
(2-25hp granulators) 		C2
(40hp granulator)		 C2 deluxe
(2- 40hp granulators)
Production (throughput lbs/hr) *400-500 *600-800 *600-800 *1100-1600
Granulator Horsepower 25 25 x2 40 40 x 2
Total Horsepower 36.5 69 56 106
Available in 208v YES YES YES YES
Power Requirements @ 230v 80.5 amps (F.L.A.) 157.9 amps (F.L.A.) 112.5 amps (F.L.A.) 222 amps (F.L.A.)
Power Requirements @ 480v 40.5 amps (F.L.A.) 79.2 amps (F.L.A.) 56.5 amps (F.L.A.) 111 amps (F.L.A.)
Rotor Width 20” 20” 24” 24” x 2
Rotor Diameter 12.5” 12.5” 16” 16” x 2
Standard Screens (1/16”) (3/32”) (1/8”) (5/16”) (1/16”) (3/32”)
(1/8”) (5/16”) x2		 (1/16”) (3/32”)
(1/8”) (5/16”)		 (1/16”) (3/32”)
(1/8”) (5/16”) X2
Material Handling Fan 7.5hp 7.5hp x 2 7.5hp 7.5hp x 2
Dust collection system 3hp 3hp 3hp 3hp
Length 132” 270” 138” 276”
Width 43” 43” 60” 60”
Height 100” 138” 112” 138”
Weight 3200 lbs 5700 lbs 3700 lbs 6800 lbs
Can be installed in a “ L ”
Config. for minimal footprint.		 YES YES YES YES
Air Supply Needed NO NO NO NO
